DeepCool AK400 G2 DIGITAL NYX Black CPU Air Cooler
- Regular price
- RM 169.00
- Sale price
- RM 169.00
- Regular price
-
RM 0.00
Share
Single-Tower Air Cooling with CPU Status on Display

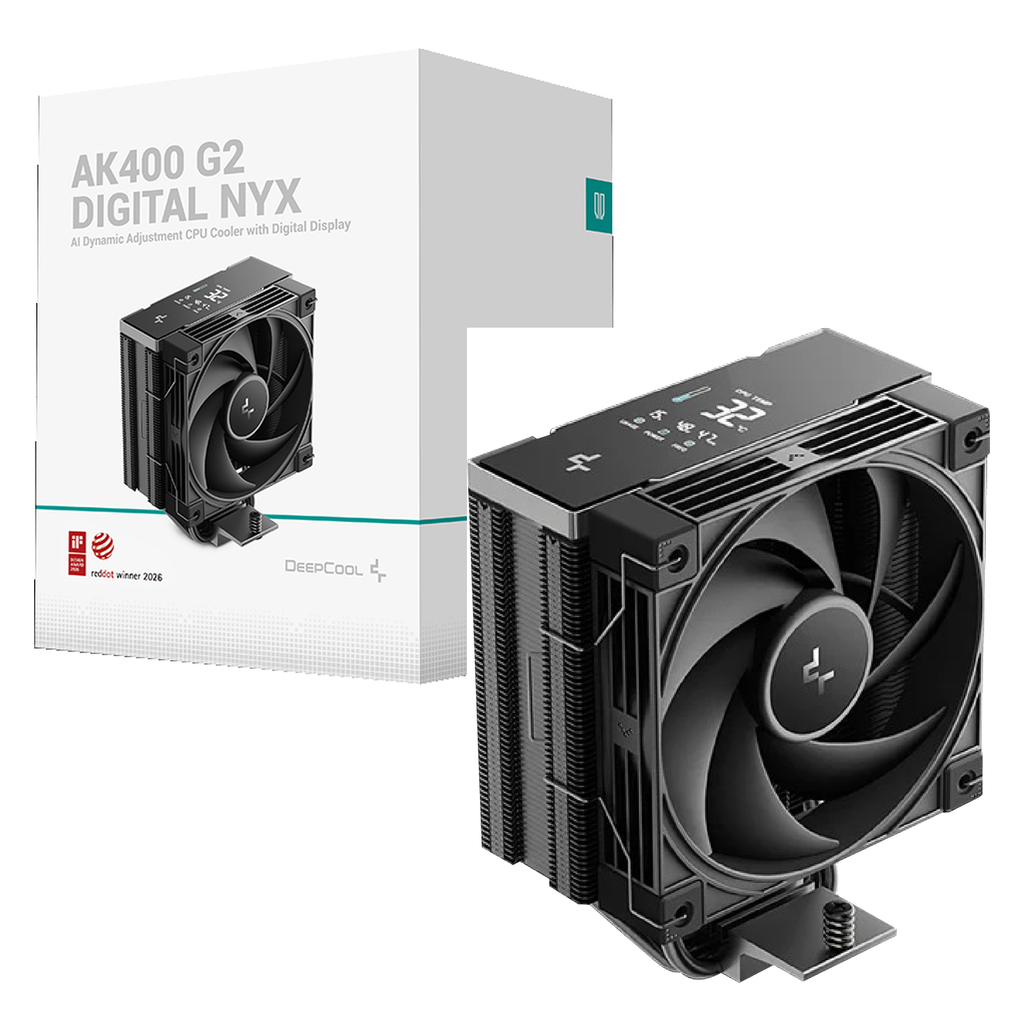

The DeepCool AK400 G2 DIGITAL NYX combines a black single-tower air cooler, four 6 mm heatpipes and a 120 mm PWM fan with a top-mounted CPU status display. It gives a compatible desktop build both conventional tower cooling and a direct view of temperature, usage, power and frequency information through supported software.
The display needs an available internal USB 2.0 header and DeepCool software, so plan more than just the fan connection. Check the 156 mm published cooler height, socket mounting and surrounding memory clearance; displayed readings and a heatpipe count do not guarantee a particular processor temperature.
Best For: Compatible Intel builds, AMD AM5 or AM4 systems, CPU status monitoring, Black-themed desktops, Tower air-cooling upgrades, Header-aware PC builds
DETAIL SPECIFICATION
| Brand / Model | DeepCool AK400 G2 DIGITAL NYX |
| Part number | R-AK400G2-BKNNMN-GJD-1 |
| Colour | Black |
| Cooling design | Single-tower air cooler; four 6 mm copper heatpipes |
| Fans | One 120 mm PWM fan |
| Intel sockets | LGA1851 / 1700 / 1200 / 115X |
| AMD sockets | AM5 / AM4 |
| CPU status display | Quad-segment display: temperature, usage, wattage and frequency |
| Display connection / control | Available motherboard USB 2.0 header and DeepCool software |
| Product dimensions | 132×92×156 mm(L×W×H) |
| Heatsink dimensions | 130×92×151 mm(L×W×H) |
| Product net weight | 958 g |
| Fan dimensions | 120×120×25 mm(L×W×H) |
| Maximum fan speed | 2200±10% RPM(max) |
| Fan airflow | 63.4 CFM |
| Fan air pressure | 3.33 mmAq |
| Fan connector | 4-pin PWM |
| Fan bearing | Hydro Bearing |
| Fan rated voltage | 12 VDC |
| Fan rated current | 0.25 A |
| Fan power consumption | 3 W |
| Display module voltage | 5 VDC |
| Display module power consumption | 0.65 W |
| Display area | 29x39 mm |
| Warranty | 3 Years Local Manufacture Warranty |
TECHNICAL FEATURES
Exact DIGITAL NYX hardware
This AK400 G2 DIGITAL NYX has four copper heatpipes in a single-tower layout with one 120 mm PWM fan. Its display-equipped configuration should not be confused with the wood-grain non-digital G2 model.
CPU monitoring at the cooler
The quad-segment display presents CPU temperature, usage, wattage and frequency. Connect the display to a free motherboard USB 2.0 header and install the supported DeepCool software before expecting monitoring functions.
PWM-controlled airflow
The four-pin PWM fan connection allows speed control through compatible hardware. Published maximum speed, airflow and pressure are fan specifications, not guaranteed system temperatures or an always-silent operating condition.
Plan mounting and component clearance
Check the 156 mm published height against the actual enclosure, RAM area and fan position. Use the correct mounting hardware for the exact CPU socket and confirm a clear path for intake and exhaust airflow.
🔎 Technical Conclusion
Cooling Design:
A single-tower cooler with four 6 mm heatpipes and one 120 mm PWM fan.
Socket Compatibility:
Supports the listed Intel LGA1851/1700/1200/115X and AMD AM5/AM4 platforms with the correct mounting arrangement.
Monitoring / Control:
Software-driven CPU status display requires an internal USB 2.0 header; fan control uses a four-pin PWM connection.
Physical Fit:
Published height is 156 mm; verify case, RAM and installed fan clearances together.
Installation Planning:
Reserve the correct headers, mounting hardware and software support before fitting the cooler.
Overall Positioning:
A black display-equipped tower air cooler for a compatible desktop where visible CPU monitoring is useful; no universal temperature, noise or benchmark guarantee.
✅ Suitable For
- PC builders who want visible CPU status
Consider this exact display-equipped model when an internal monitoring readout is useful and the required USB header is available. - Users of the listed Intel or AMD platforms
Verify the exact processor socket and mounting arrangement instead of relying only on the CPU brand. - Owners planning a black air-cooled desktop
Match the cooling assembly to the system layout and processor cooling demand, rather than choosing only by appearance. - Builders checking installation space
Confirm enclosure height, memory clearance, fan position and cable routing before committing to the installation.
