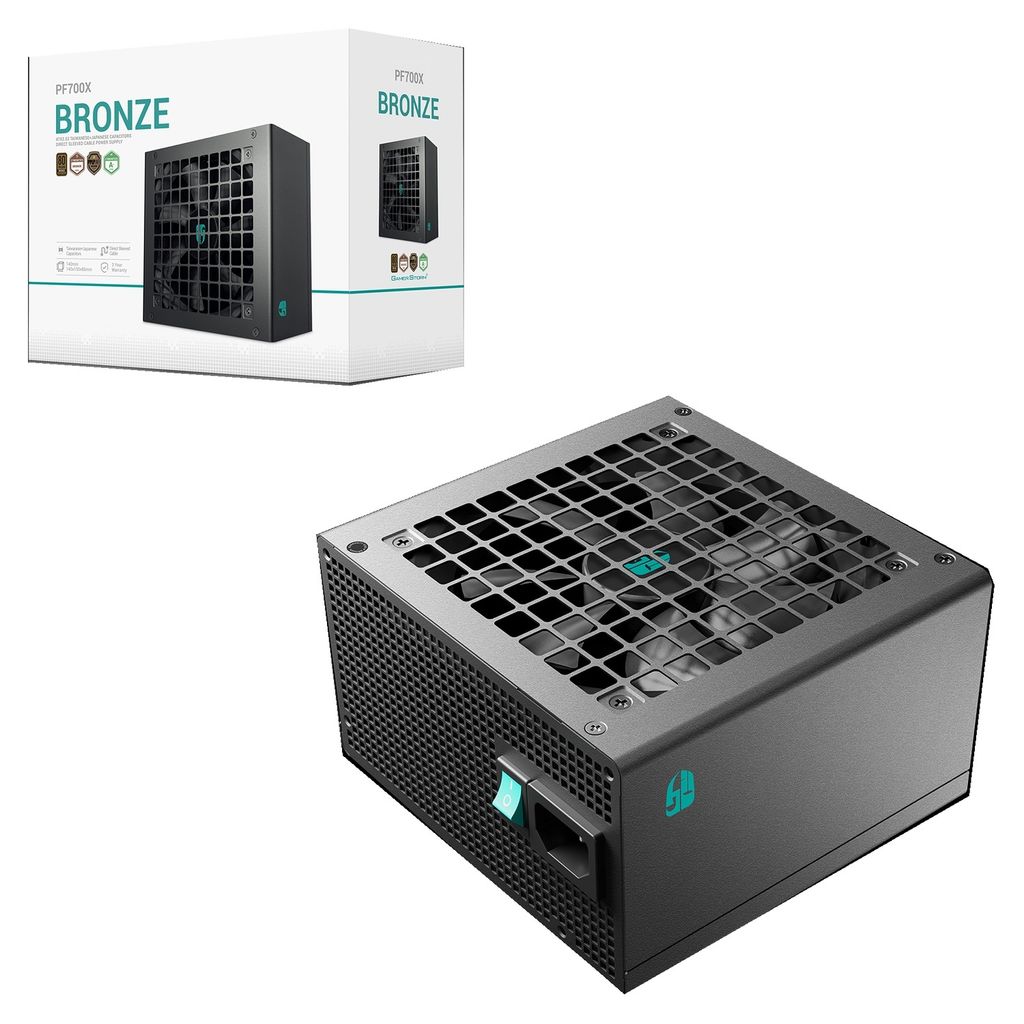

DeepCool GamerStorm PF700X 700W 80 PLUS Bronze Non-Modular ATX Power Supply (R-PF700X-HD0B-JGUK)

Plan a 700W Desktop with Bronze Efficiency and Fixed Sleeved Cables

DeepCool GamerStorm PF700X is a 700W non-modular ATX power supply for a desktop with a checked power budget and connector plan. The exact R-PF700X-HD0B-JGUK listing belongs to the PF-X family, with fixed sleeved cables and a Bronze efficiency specification rather than a detachable modular cable panel.

The official PF700X specification lists ATX12V V2.52, a 140mm-long housing and a 120mm Longlife HYB fan. Verify the actual CPU and graphics-card power connections and leave space for the attached leads; rated wattage and efficiency certification alone do not establish compatibility with every system.

Best For: Planned 700W desktops, Fixed-cable PC builds, ATX PSU replacements, Measured PSU bays, Verified CPU/GPU cable layouts, Bronze-efficiency systems

DETAIL SPECIFICATION

TECHNICAL FEATURES

The exact PF700X configuration

The current part identifies PF700X rather than the older PF700. Check the supplied cable set and actual component requirements instead of transferring assumptions from a similarly named model.

Bronze efficiency with realistic expectations

The official efficiency specification is measured at a defined load and input condition. It does not guarantee a fixed electricity saving or establish the right wattage for every build.

Fixed leads need a routing plan

The non-modular sleeved cables stay attached. Reserve space beyond the 140mm housing for cable exits, unused leads and safe bends without obstructing cooling fans.

Exact-model cooling and protections

A 120mm Longlife HYB fan and eight listed protection functions form part of the design. Correct installation and matched components remain necessary; this is not a silent-operation or universal-compatibility promise.

🔎 Technical Conclusion

Power / Efficiency:
700W rated output with the exact-model Bronze efficiency specification.

Form Factor:
ATX12V V2.52; 150 x 140 x 86mm housing (W x L x H).

Cabling:
Non-modular fixed sleeved cables; additional routing space required.

Connectivity:
Check the exact CPU, GPU and peripheral requirements against the supplied cable set before installation.

Cooling / Protection:
120mm Longlife HYB fan and eight listed protection functions; no guaranteed noise claim.

Overall Positioning:
A fixed-cable 700W option for a correctly planned desktop, not a substitute for complete system compatibility checking.

✅ Suitable For

• Builders with a checked 700W power budget
  Confirm the complete system load and graphics-card guidance before selecting capacity.
• Users replacing a conventional ATX PSU
  Measure the case compartment and cable exits and confirm the required connections.
• Builders comfortable with attached cables
  Plan storage for unused leads and maintain clear airflow paths.
• Users comparing similarly named power supplies
  Match the PF700X model and exact current part rather than assuming old PF700 specifications apply.
