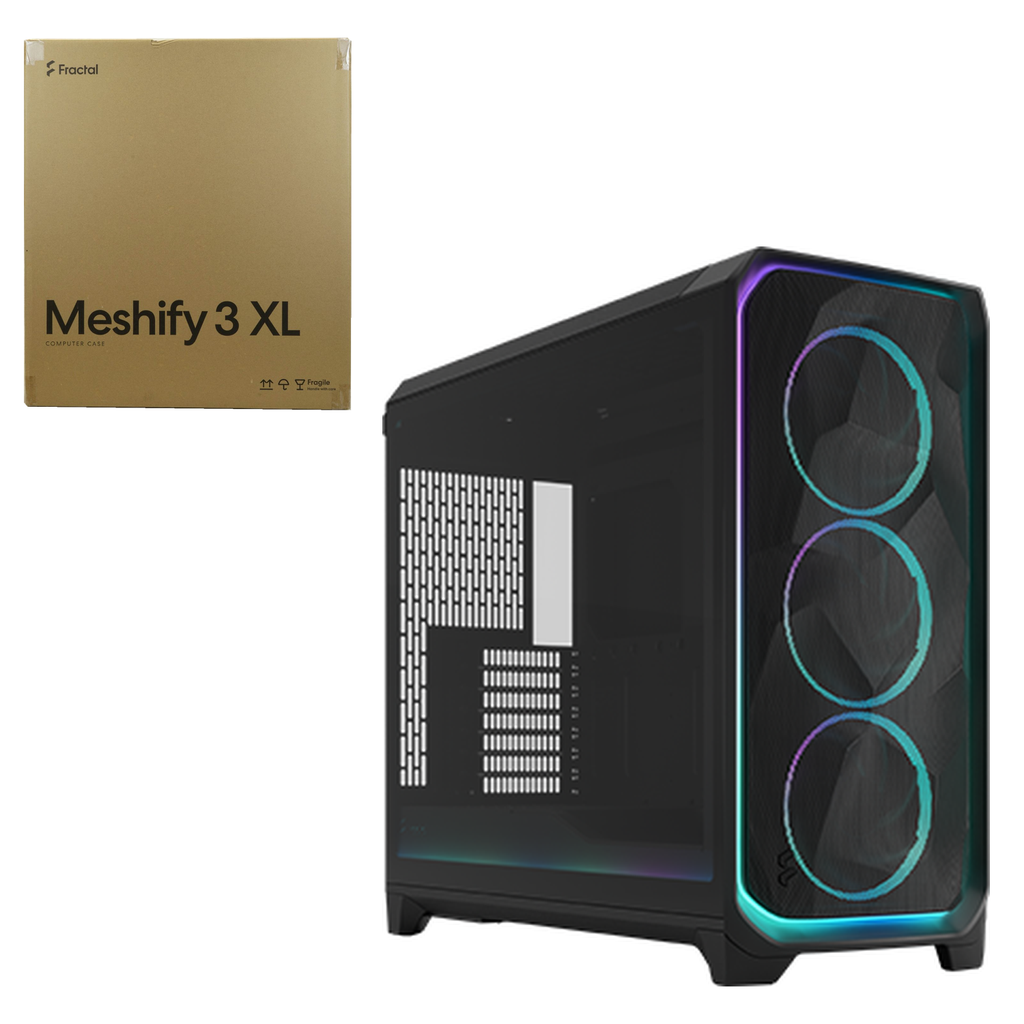

Fractal Design Meshify 3 XL Ambience Pro RGB Black TG PC Case with Three Momentum 14 Fans (FD-C-MES3X-03)
- Regular price
- RM 1,149.00
- Sale price
- RM 1,149.00
- Regular price
-
RM 0.00
Share
A Spacious Black Ambient Showcase with Room for Planned Cooling
Fractal Design Meshify 3 XL Ambience Pro RGB Black TG is a larger enclosure for a separately configured desktop where component layout and maintenance access matter. Three Momentum 14 front fans, a ventilated mesh front and a tempered-glass side provide the platform for your own compatible gaming or creative hardware.
The Ambience Pro version includes ambient ARGB Gen 2 lighting and an Adjust Pro Hub for supported browser-based configuration. Top radiator support up to 420mm and front support up to 360mm provide cooling options, but measure complete assemblies, cable bends and the motherboard layout together. XL dimensions do not mean every maximum-sized component fits simultaneously; no complete-PC hardware package is implied.
Best For: Large black desktops, Glass-side builds, Planned custom cooling, Long graphics cards, Organised cable layouts, Ambient RGB showcases
DETAIL SPECIFICATION
| Brand / Model | Fractal Design Meshify 3 XL Ambience Pro RGB Black TG |
| Exact SKU | FD-C-MES3X-03 |
| Colour | Black |
| Side panels | Left: tempered glass; right: steel |
| Motherboard support | ATX / Micro-ATX / Mini-ITX; verify exact dimensions for larger board formats |
| Included fans | 3 x Momentum 14 front fans |
| Fan construction | LCP blades and fluid dynamic bearings |
| Lighting / Control | Ambient ARGB Gen 2 lighting; Adjust Pro Hub included |
| Front fan mounts | 3 x 120/140mm or 2 x 180mm |
| Top fan mounts | 3 x 120/140mm |
| Rear fan mount | 1 x 120/140mm |
| Front radiator sizes | 120 / 240 / 280 / 360mm |
| Top radiator sizes | 120 / 140 / 240 / 280 / 360 / 420mm |
| Rear radiator sizes | 120 / 140mm |
| GPU maximum length / width | 512mm / 189mm; verify complete installation |
| CPU cooler maximum height | 182mm |
| PSU support | ATX; maximum 230mm length |
| Expansion slots | 7 |
| Top I/O | 2 x USB-A 5Gbps; USB-C 20Gbps; audio/microphone combo jack; power button |
| Cable-routing space | 37.5mm; grommets, clips and routing straps |
| Dust filter | PSU intake filter |
| Tool-less access | Side panels, bottom filter, front panel, top panel and PSU bracket |
| Dimensions (L x W x H) | 575 x 245 x 515mm |
| Volume | 71.29 litres |
| Net weight | 11.4kg |
| Package contents | PC case, accessory box and user manual |
TECHNICAL FEATURES
Space for a considered layout
This is Meshify 3 XL, not the smaller standard Meshify 3. Compare the full enclosure footprint and actual board dimensions with the desk and planned component arrangement.
Know which lighting package is included
Ambient ARGB Gen 2 lighting; Adjust Pro Hub included. Allow for the required hub connections and supported browser configuration.
Plan cooling and graphics hardware together
The top can accommodate listed radiators up to 420mm and the front up to 360mm. Nominal radiator size does not account for fan thickness, fittings, motherboard components or graphics-card power-cable bends.
Access and cable organisation
Removable panels and 37.5mm routing space help assembly and future servicing. Supported USB speeds require compatible motherboard headers; clean filters according to the operating environment.
🔎 Technical Conclusion
Case Format:
Meshify 3 XL Ambience Pro RGB Black TG with standard ATX, Micro-ATX and Mini-ITX support.
Airflow / Cooling:
Three front Momentum 14 fans; top radiators up to 420mm and front up to 360mm.
Component Clearance:
GPU up to 512mm long / 189mm wide; CPU cooler up to 182mm; ATX PSU up to 230mm. Check the complete layout.
Lighting / Control:
Ambient ARGB Gen 2 lighting; Adjust Pro Hub included.
Physical / Installation:
575 x 245 x 515mm; 11.4kg net; seven slots and 37.5mm cable-routing space.
Overall Positioning:
A spacious black enclosure for a separately specified desktop with integrated ambient lighting and planned cooling.
✅ Suitable For
- Builders planning a larger black desktop
Check the case footprint, exact motherboard dimensions and practical service access before selecting all components. - Owners using longer graphics cards
Compare card length, width and power-connector clearance with the actual radiator and cable arrangement. - Users wanting coordinated ambient lighting
Plan the Adjust Pro Hub wiring and supported configuration workflow. - Builders installing substantial cooling hardware
Measure complete radiator/fan assemblies and check clashes rather than relying only on nominal radiator sizes.
