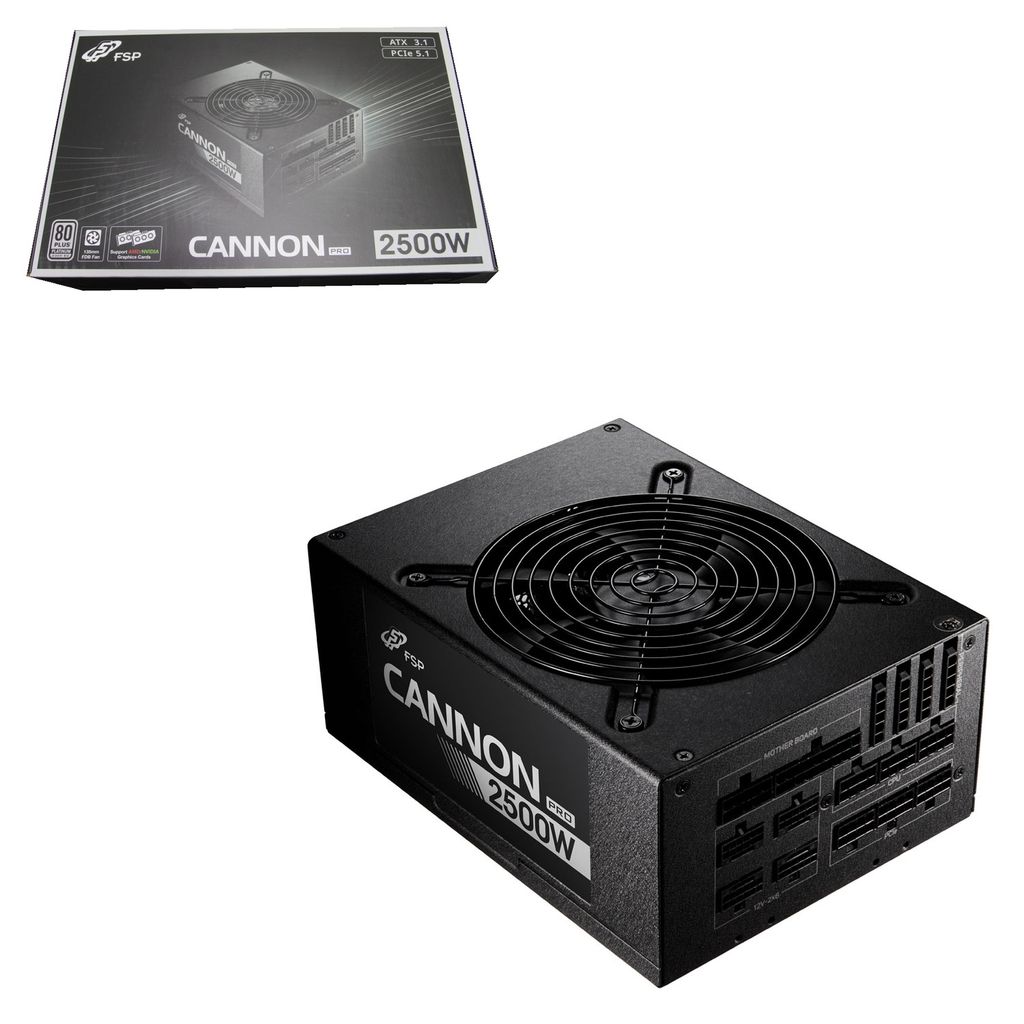

FSP CANNON PRO 2500W ATX 3.1 PCIe 5.1 80 PLUS Platinum Fully Modular Power Supply (PPA25A0100)

Plan Serious Workstation Power with Four Native 12V-2x6 Cables

FSP CANNON PRO 2500W ATX 3.1 is a fully modular power supply for exceptionally demanding, carefully specified workstation builds. The exact FSP2500-57APB configuration provides four native PCIe 12V-2x6 cables, 80 PLUS 230V EU Platinum certification and a substantial cable set for a verified high-power system.

This is specialist hardware rather than a routine desktop replacement. Its 200mm housing needs additional cable space, and the manufacturer specifies 200-240V AC input at 15A. Have a qualified professional confirm the suitable mains circuit, outlet and supplied power-cord arrangement before installation; do not assume an ordinary desktop power connection is sufficient.

Best For: Specified high-power workstations, Verified multi-GPU layouts, Four native GPU power cables, Large ATX PSU compartments, Modular workstation wiring, Professionally planned installations

DETAIL SPECIFICATION

TECHNICAL FEATURES

Capacity for a defined workstation plan

A 2500W label is not a reason to select this PSU for every gaming PC. Validate the complete load, motherboard and GPU power requirements, and the electrical supply arrangement before purchase.

Four native GPU power leads

The exact ATX 3.1 model provides four native 12V-2x6 cables. The alternative eight-pin cable set uses corresponding PSU ports; do not count alternative cables as additional simultaneous native outputs or mix cables from other PSUs.

A large modular installation

Only connect the supplied compatible cables that the build needs. Allow room beyond the 200mm housing for plugs, cable bends and airflow in the actual case.

Electrical planning comes first

The official 200-240V, 15A input specification makes mains suitability part of the installation plan. Qualified advice and correct wiring are required; protection circuits do not make an unsuitable outlet or adapter acceptable.

🔎 Technical Conclusion

Power / Efficiency:
2500W output with 80 PLUS 230V EU Platinum certification, for a verified specialist load.

Form Factor:
ATX12V V3.1; 200 x 150 x 86mm before connector and cable clearance.

Cabling:
Fully modular; use only this unit compatible supplied cable set.

Connectivity:
Four native 12V-2x6 cables plus the listed CPU, separate PCIe and alternative cable set; verify port usage.

Cooling / Protection:
135mm FDB fan and eight listed protection functions; no silent-operation guarantee.

Overall Positioning:
A specialist high-capacity workstation PSU requiring power-budget, case and mains-supply planning.

✅ Suitable For

• Workstation builders with a verified high-power design
  Confirm the complete component load and whether this capacity is actually necessary.
• Users planning multiple compatible GPUs
  Check each GPU power interface, available PSU ports and total load rather than assuming connector count proves compatibility.
• Owners of large compatible ATX enclosures
  Measure the 200mm unit plus plugs and safe cable bends before committing to the build.
• Professionally planned electrical installations
  Confirm the mains circuit, outlet and correct supplied power cord with a qualified professional.
