FSP M580 White Panoramic PC Case Bundle with VITA GM 850W PSU, 6 ARGB Fans and ZENFAN (4711498482662)
- Regular price
- RM 819.00
- Sale price
- RM 819.00
- Regular price
-
RM 0.00
Share
Frame a White Custom Desktop with Included Power and Airflow Hardware

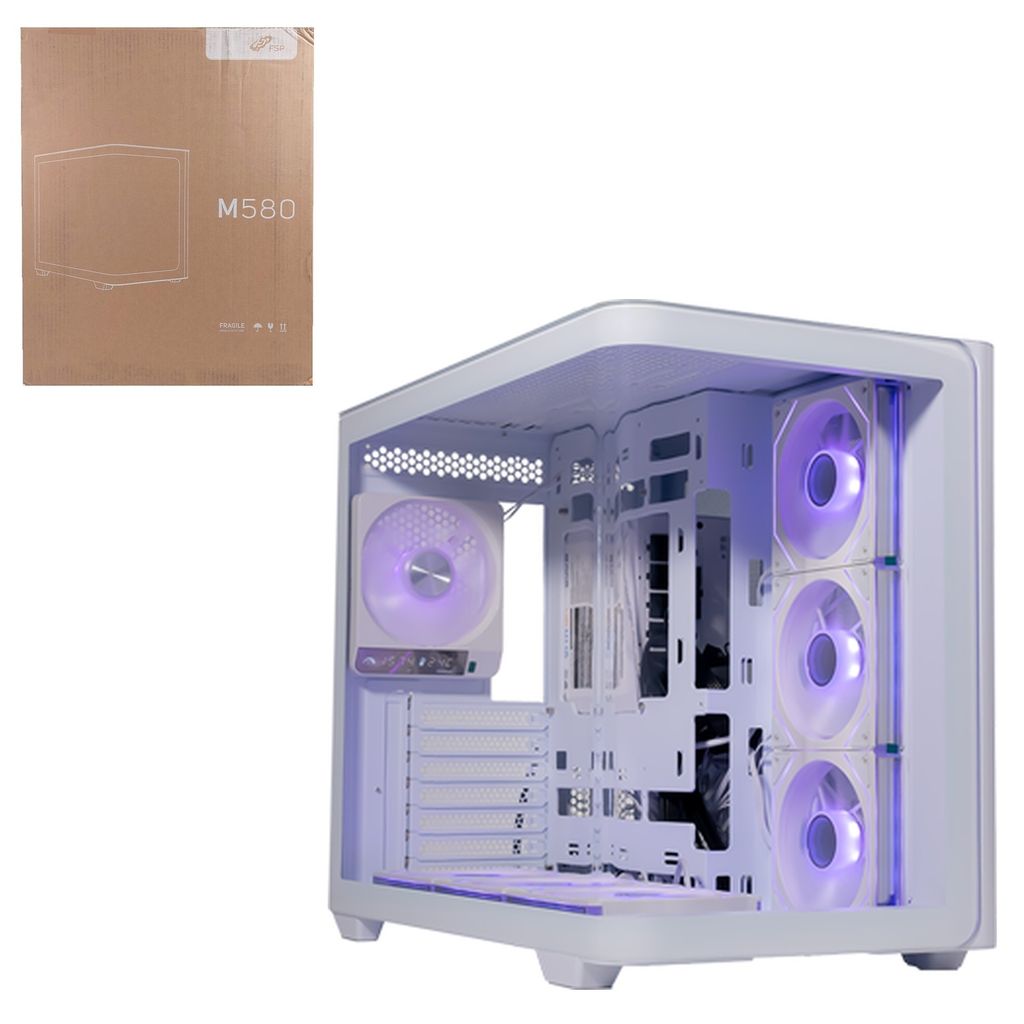

FSP M580 White presents a custom desktop through a seamless curved-glass panel, with this exact local bundle supplying a VITA GM 850W PSU, six ARGB fans and one ZENFAN. It is intended for builders who want the enclosure, power supply and starting fan layout together while choosing their own computing components.
The white chassis supports Micro-ATX and Mini-ITX boards, plus compatible back-connect ATX boards only. Plan the complete GPU, CPU cooler, radiator, storage and cable arrangement within the published clearances; a conventional front-connector ATX board must not be assumed to fit. Motherboard, CPU, memory, storage, GPU and CPU cooler remain separate purchases.
Best For: White panoramic desktops, PSU-inclusive custom builds, Micro-ATX projects, Mini-ITX systems, Verified back-connect ATX, Seven-fan starting layouts
DETAIL SPECIFICATION
| Brand / Model | FSP M580 White, exact local bundle |
| Exact bundle SKU | 4711498482662 |
| Chassis model | M580-WA |
| Colour | White chassis |
| Included bundle | VITA GM 850W PSU; six ARGB fans; one ZENFAN |
| Motherboard compatibility | Micro-ATX / Mini-ITX; ATX restricted to compatible back-connect boards |
| Materials | 0.7mm SPCC steel and curved tempered glass |
| Dimensions | 460 x 285 x 398mm (D x W x H) |
| Listed chassis weight | 7.5kg; not a verified total shipping weight for the bundle |
| Graphics-card length limit | Up to 445mm; verify power cables and cooling fit |
| CPU-cooler height limit | Up to 160mm |
| PSU allowance | ATX, up to 240mm |
| Expansion slots | 7 |
| Drive mounts | 1+1 x 3.5-inch; 2+1 x 2.5-inch; verify shared-position use |
| Fan mounting | Side: 3 x 120mm / 2 x 140mm; top: 3 x 120mm / 2 x 140mm; bottom: 3 x 120mm; rear: 1 x 120mm |
| Radiator mounting | Top or bottom up to 360mm; verify combined fit and safe AIO orientation |
| Front USB | 2 x USB 3.0 Type-A and 1 x Type-C; motherboard header support required |
| Power supply | FSP VITA GM 850W; fully modular; 80 PLUS Gold |
| PSU standards | ATX12V v3.1 / PCIe 5.1; native 12V-2x6 cable |
| ZENFAN | One rear fan with fan-speed and temperature display |
TECHNICAL FEATURES
A bundle foundation rather than a finished computer
The included PSU and seven-fan arrangement reduce the number of chassis-related parts to select. They do not include the processor, motherboard, graphics card or storage shown in a typical finished-PC build.
Board layout is a real compatibility condition
Micro-ATX and Mini-ITX can be considered within the stated support, while ATX requires a compatible back-connect design. Check exact connector positions and tray clearance before choosing a motherboard.
Panoramic glass benefits from deliberate routing
The curved glass exposes the component layout across the front and side. Route modular cables and keep the intake paths clear so appearance does not come at the expense of installation access.
Match the power connections to the actual hardware
The VITA GM 850W is a modular 80 PLUS Gold PSU with a native 12V-2x6 connection. Use only appropriate cables and verify the chosen card and CPU-power requirements rather than relying on wattage alone.
🔎 Technical Conclusion
Case Format:
White curved-glass panoramic mid tower.
Included Cooling:
Six ARGB fans and one ZENFAN in this exact local bundle; radiator configurations require a full fit check.
Board / Clearance:
Micro-ATX / Mini-ITX or compatible back-connect ATX; GPU 445mm and CPU cooler 160mm limits.
Power / Connectivity:
Included VITA GM 850W fully modular 80 PLUS Gold PSU; two front USB-A ports and one Type-C.
Physical / Installation:
460 x 285 x 398mm, with drive, radiator and modular-cable space planned together.
Overall Positioning:
A white showcase-case bundle for a separately configured desktop, with included power and airflow hardware.
✅ Suitable For
- White-theme custom PC builders
Choose separate computing components to suit the exact enclosure and platform. - Users seeking an included PSU and fan layout
The VITA GM 850W and seven fans form the bundle starting point without implying a complete desktop. - Micro-ATX and Mini-ITX users
Measure the graphics card, CPU cooler, storage and all cooling assemblies before installation. - Back-connect ATX system planners
Confirm the exact board fits the back-connect tray and connector layout rather than assuming all ATX boards work.
