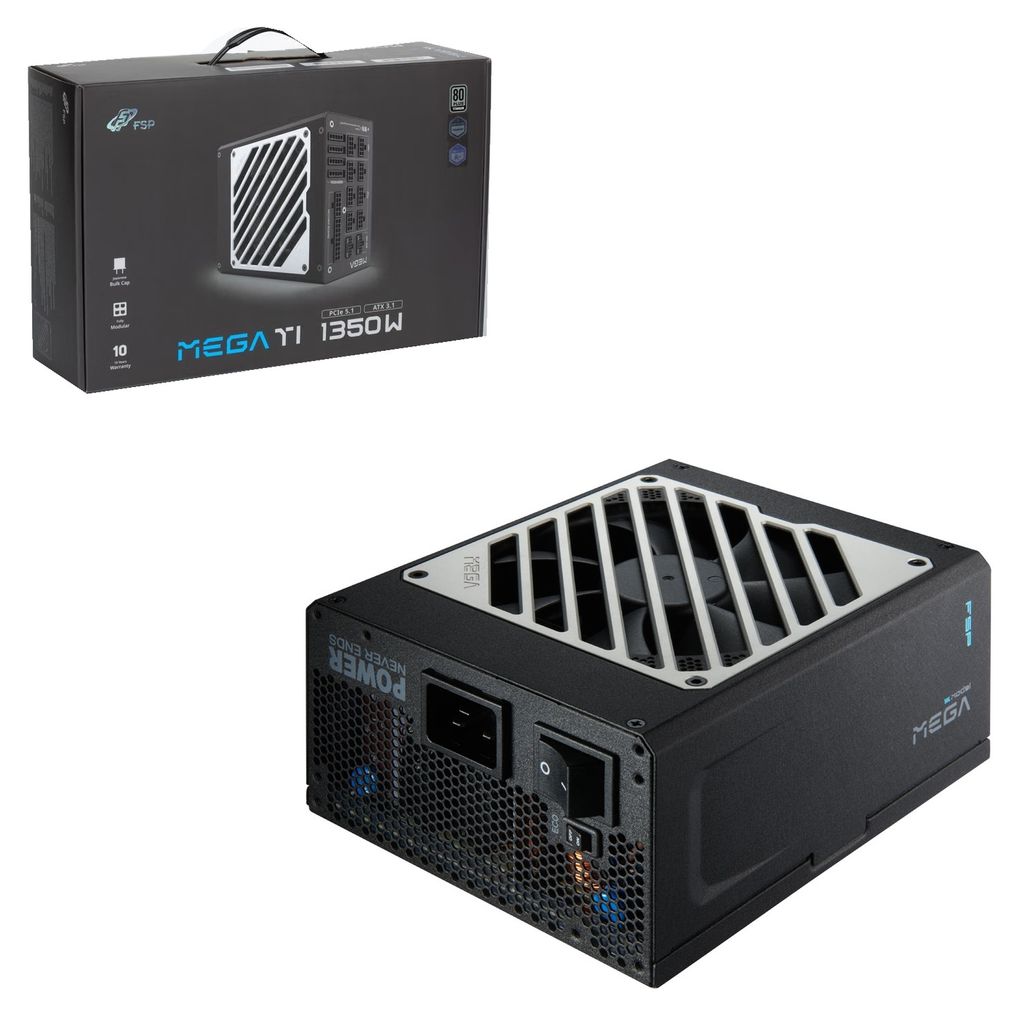

FSP MEGA TI 1350W ATX 3.1 PCIe 5.1 80 PLUS Titanium Fully Modular Power Supply (PPA13F0200)

Build a High-Power Desktop Around Titanium Efficiency and Modular Cables

FSP MEGA TI 1350W is a fully modular ATX 3.1 power supply aimed at carefully planned high-power desktops. Its 80 PLUS Titanium certification, two native PCIe 12V-2x6 cables and separate PCIe six-plus-two-pin leads give builders connection options after the exact system power and cable requirements have been established.

The MEGA-1350TI hardware uses a 180mm-long housing, 135mm fluid-dynamic-bearing fan and selectable eco semi-fanless control. This is not an SFX unit or a universal compatibility promise: allow additional connector and cable-bend space, and confirm both the case clearance and the complete system load before installation.

Best For: Planned high-power desktops, Titanium-efficiency builds, Verified 12V-2x6 systems, Large ATX PSU bays, Modular-cable layouts, Creator workstation upgrades

DETAIL SPECIFICATION

TECHNICAL FEATURES

1350W capacity needs a real load plan

The rated output provides capacity for a verified high-demand build. It does not remove the need to check GPU guidance, component load and the suitability of the complete electrical setup.

Two native 12V-2x6 cable options

Two separate native cables are supplied alongside six separate PCIe six-plus-two-pin leads. Select and seat the correct connectors for the exact graphics cards; do not assume that every possible multi-card configuration is supported.

Modular routing with installation clearance

Attach only the supplied cables needed for the build and reserve space beyond the 180mm housing. Never mix modular cables from a different PSU just because the plugs appear to fit.

Conditional semi-fanless operation

The eco switch enables fan-stop behaviour under the manufacturer stated low-load conditions. The 135mm FDB fan operates as cooling demand rises; neither the switch nor an acoustic certification guarantees a silent complete computer.

🔎 Technical Conclusion

Power / Efficiency:
1350W output with 80 PLUS Titanium and Cybenetics Titanium certification.

Form Factor:
ATX housing, 180 x 150 x 86mm; allow extra cable and connector space.

Cabling:
Fully modular embossed cables; use the supplied compatible set only.

Connectivity:
Two native 12V-2x6 cables, six PCIe 6+2-pin cables and the exact CPU/peripheral cable set.

Cooling / Protection:
135mm FDB fan, selectable eco semi-fanless control and eight listed protection functions.

Overall Positioning:
A high-capacity modular option for a measured high-power desktop, not an automatic fit for every system.

✅ Suitable For

• Builders with a verified high-power requirement
  Choose the output after checking the complete component load and exact graphics-card requirements.
• Users planning native 12V-2x6 connections
  Confirm each card connector and cable need, and follow seating and bend guidance.
• Owners of a sufficiently large ATX case
  Measure the PSU compartment plus cable exits rather than using housing length alone.
• Builders prioritising organised modular wiring
  Use only the supplied compatible cables and route them clear of fans and sharp bends.
