FSP S190 White Triple-Glass Compact Micro-ATX PC Case with 5 ARGB Fans (4711498481832)
- Regular price
- RM 179.00
- Sale price
- RM 179.00
- Regular price
-
RM 0.00
Share

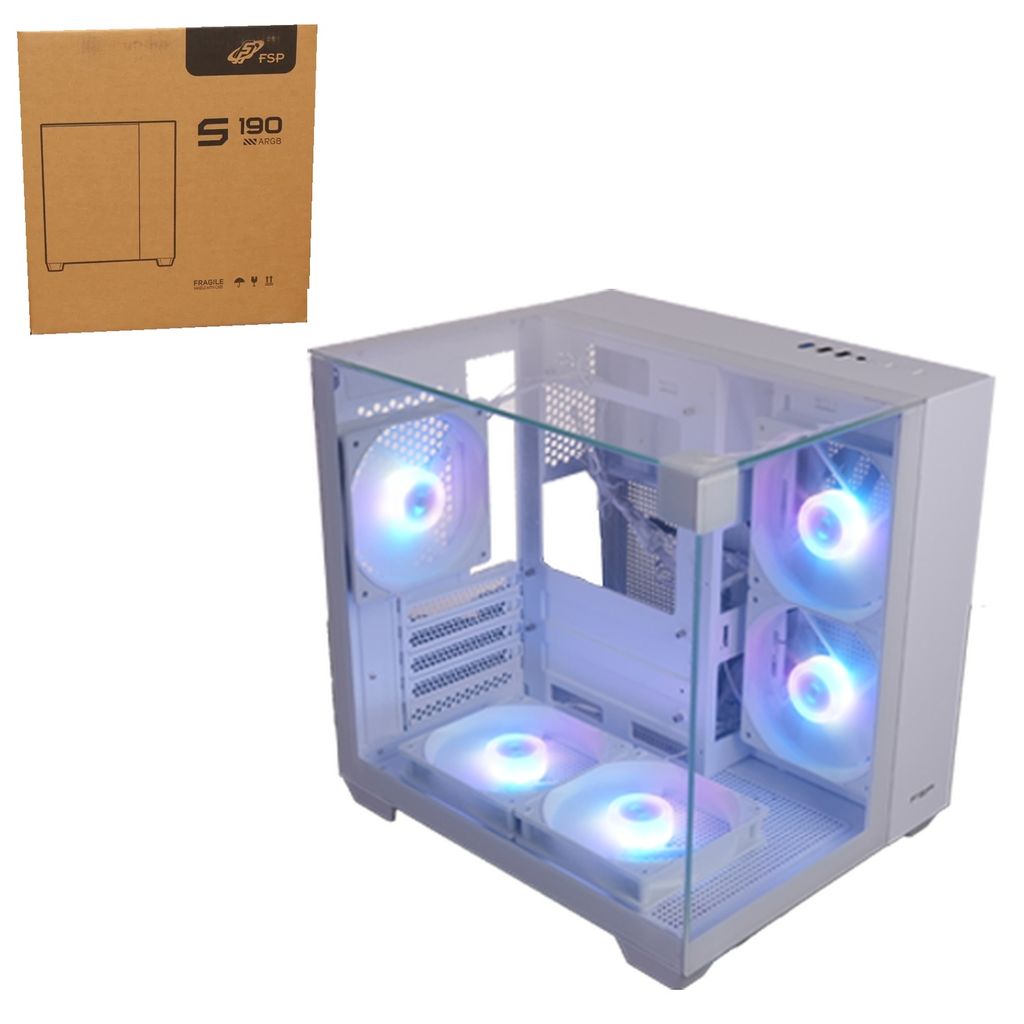

Showcase a White Compact Build Behind Three Glass Panels
FSP S190 White gives a compact custom desktop a three-glass-panel showcase, with five ARGB fans included in this exact configuration. It suits builders planning a white small-board system while selecting their own power supply and computing hardware.
Motherboard selection is especially important: FSP recommends Mini-ITX or selected smaller Micro-ATX boards around 244 x 185mm, since a wider board can obstruct the side fans. Check the entire layout against the 325mm graphics-card, 155mm CPU-cooler and 150mm PSU limits. This is not a complete PC.
Best For: White compact desktops, Mini-ITX projects, Verified small Micro-ATX, Triple-glass showcases, ARGB fan layouts, Measured custom builds
DETAIL SPECIFICATION
| Brand / Model | FSP S190 White |
| Exact current SKU | 4711498481832 |
| Configuration | case and five ARGB fans; PSU separate |
| Colour | White |
| Chassis materials | SPCC steel and three glass panels |
| Official dimensions | 333 x 275 x 323mm (D x W x H), 29.5L |
| Motherboard support | Mini-ITX or selected smaller Micro-ATX; manufacturer recommends around 244 x 185mm and warns of side-fan obstruction |
| CPU-cooler height | Up to 155mm |
| Graphics-card length | Up to 325mm; check fan and cable clearance |
| Expansion slots | 5 |
| PSU allowance | ATX, up to 150mm |
| Included fans | Five ARGB fans in this exact local configuration |
| Fan mounting | Side: 2 x 120mm; bottom: 2 x 120mm; rear: 1 x 120mm |
| Radiator support | Side or bottom up to 240mm; verify combined fit and safe AIO orientation |
| Storage positions | 1 x 3.5-inch and 2 x 2.5-inch |
| USB ports | 1 x USB 3.0 and 2 x USB 2.0 |
| Warranty | 1 Year Local Manufacture Warranty |
TECHNICAL FEATURES
A small board must be selected deliberately
Micro-ATX is not a blanket fit guarantee here. Check exact dimensions, connector position and side-fan clearance; Mini-ITX or a verified smaller Micro-ATX layout is the practical starting point.
Five fans match the current configuration
This exact package includes five ARGB fans rather than the three-fan global baseline. Plan the side, bottom and rear airflow around the selected hardware.
Three glass panels change the cooling layout
The glass top is intended for visibility, not a top radiator installation. The official radiator locations are side and bottom, and any AIO must be arranged safely for its pump design.
Check power and cables as a full system
The PSU is purchased separately. Keep within the 150mm allowance and verify all required power connections and cable-routing space before assembly.
🔎 Technical Conclusion
Case Format:
White compact three-glass-panel chassis, officially listed at 29.5L.
Included Cooling:
Five ARGB fans in the exact current configuration.
Board / Clearance:
Mini-ITX or verified smaller Micro-ATX; GPU 325mm and CPU cooler 155mm maximums.
Power / Connectivity:
PSU separate, up to 150mm. One USB 3.0 and two USB 2.0 ports.
Physical / Installation:
333 x 275 x 323mm; plan side-fan clearance, cabling and safe radiator orientation.
Overall Positioning:
A white showcase-case foundation for a deliberately measured compact desktop, not a finished PC.
✅ Suitable For
- Compact desktop builders
Choose exact component dimensions rather than relying only on form-factor labels. - Mini-ITX users
Check the board connectors, graphics card, power supply and cooler together. - Smaller Micro-ATX planners
Confirm the exact board fits without blocking side fans; full-size Micro-ATX support is not assumed. - White showcase-build owners
The three glass panels reward tidy routing while keeping thermal and clearance planning essential.
