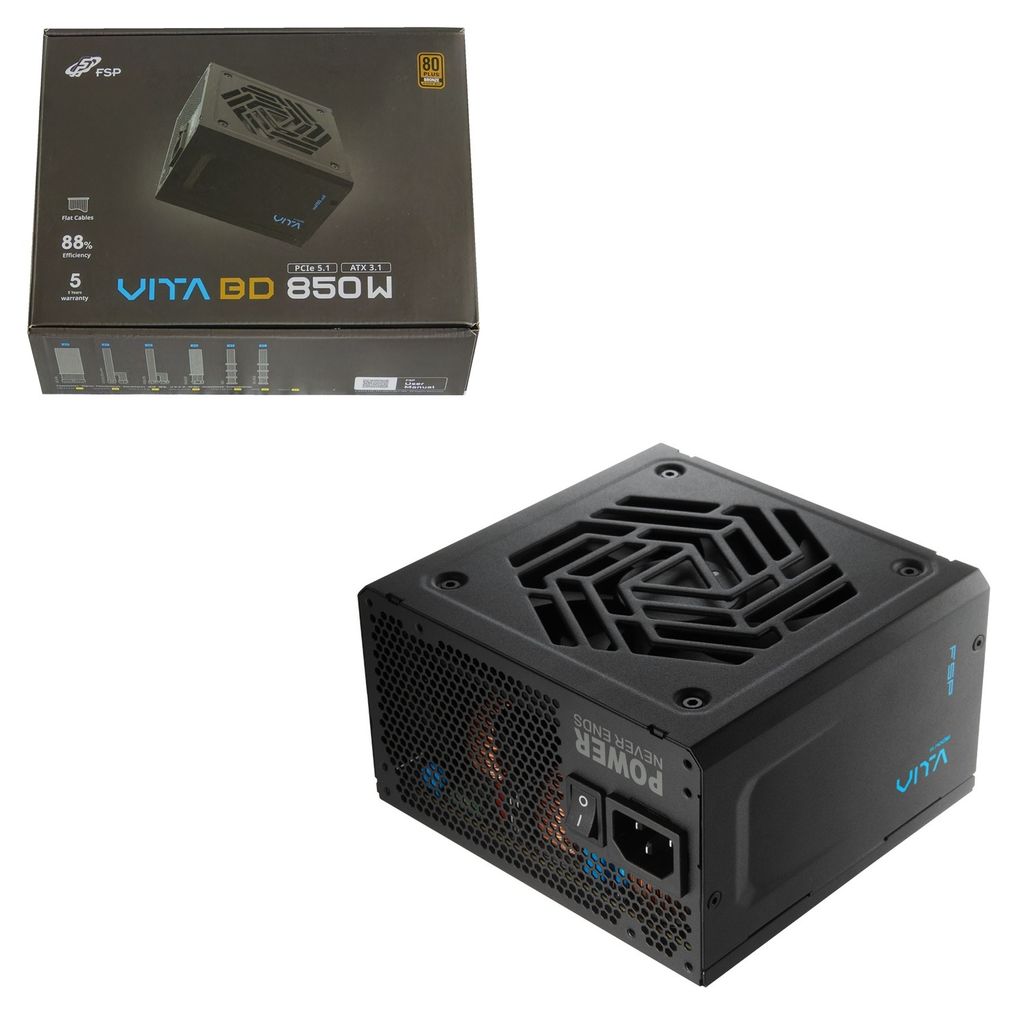

FSP VITA BD 850W ATX 3.1 PCIe 5.1 80 PLUS Bronze Non-Modular Power Supply (VITA-850BD)

Equip a Planned Desktop with 850W Power and Fixed Black Cabling

FSP VITA BD 850W is a non-modular ATX 3.1 power supply with 80 PLUS 230V EU Bronze certification and a native PCIe 12V-2x6 connection. It is an option for a desktop whose power budget and connector requirements have been checked, using attached black cables rather than a detachable cable panel.

The exact VITA-850BD model combines a 140mm-long ATX housing, 120mm sleeve-bearing fan and 200-240V AC input. Measure the PSU bay and leave room for cable exits; 850W capacity alone does not confirm compatibility with every CPU, graphics card or complete system.

Best For: Verified 850W desktops, Fixed-cable PC builds, ATX PSU replacements, Checked 12V-2x6 systems, 230V-class power setups, Measured compact PSU bays

DETAIL SPECIFICATION

TECHNICAL FEATURES

A defined 850W power option

Size the power supply against the actual full-system load and graphics-card guidance. Bronze certification describes efficiency, not an automatic match for every 850W-labelled build plan.

A native modern GPU connection

The exact unit includes one PCIe 12V-2x6 connector alongside four six-plus-two-pin PCIe connectors. Follow the GPU and PSU installation instructions for connector choice, seating and cable bends.

Fixed cables and a compact housing

The 140mm housing can help in a compatible ATX PSU bay, but attached leads still need routing space. Store unused leads clear of fans and do not assume the housing length is the total installation clearance.

Exact-model electrical specification

The manufacturer specifies 200-240V AC input, active PFC and eight protection functions. Use a suitable mains connection and properly matched components rather than treating protections as a substitute for correct installation.

🔎 Technical Conclusion

Power / Efficiency:
850W rated output; 80 PLUS 230V EU Bronze certification with efficiency dependent on operating conditions.

Form Factor:
ATX12V V3.1; 140 x 150 x 86mm housing before cable clearance.

Cabling:
Fixed black non-modular cables; allow room for attached and unused leads.

Connectivity:
One native 12V-2x6 connector, four PCIe 6+2-pin connectors and the listed CPU/peripheral set.

Cooling / Protection:
120mm sleeve-bearing fan plus eight listed protection functions; no silent-operation promise.

Overall Positioning:
An 850W fixed-cable choice for a correctly sized and compatible 230V-class desktop.

✅ Suitable For

• Builders with a complete power budget
  Check CPU, GPU and the remaining system load before choosing the rated output.
• Users replacing a standard ATX supply
  Verify case fit, AC input suitability and the required connector arrangement.
• Owners of a compatible 12V-2x6 graphics card
  Confirm the exact card requirements and fully seat the connector without tight cable bends.
• Builders comfortable with non-modular wiring
  Plan the fixed leads and unused-cable storage to keep the interior orderly and fans unobstructed.
