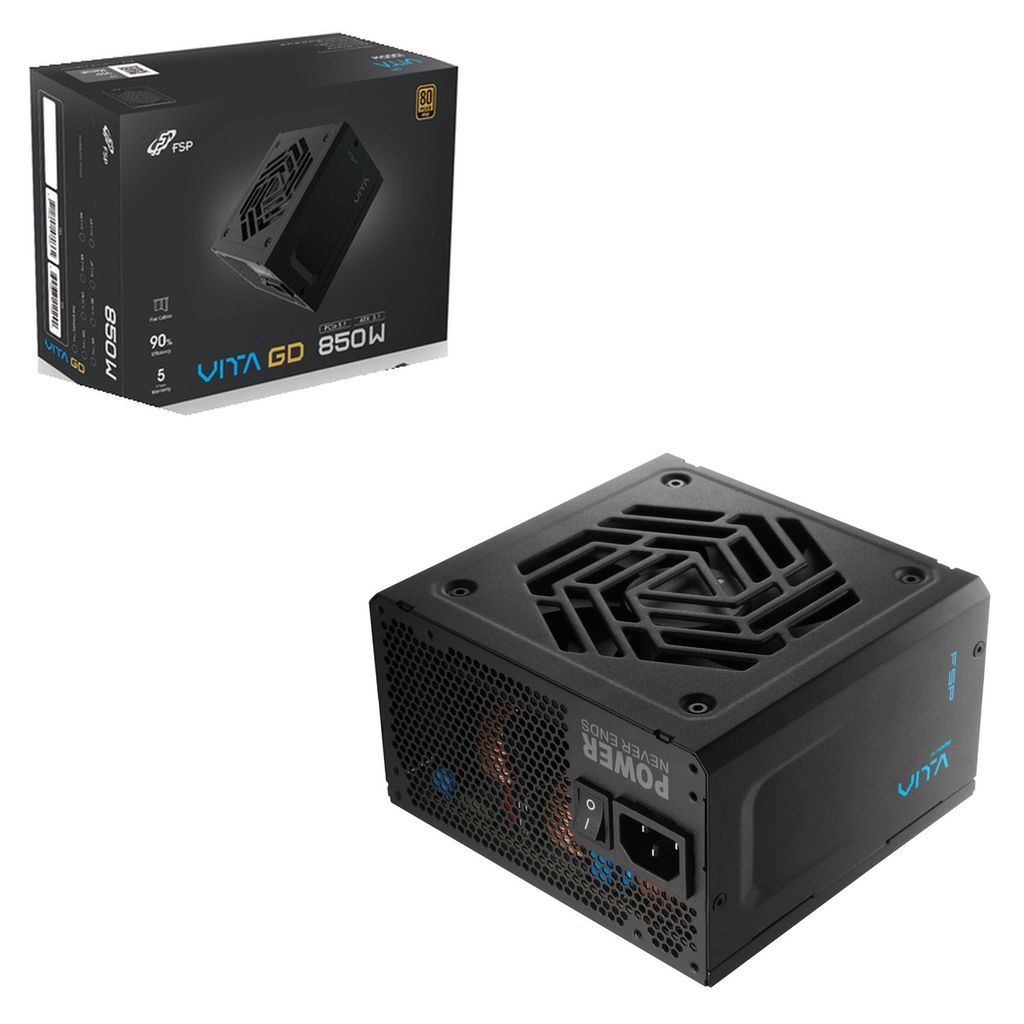

FSP VITA GD 850W ATX 3.1 PCIe 5.1 80 PLUS Gold Non-Modular Power Supply (VITA-850GD)

Plan an 850W Desktop Around Gold Efficiency and Fixed Cabling

FSP VITA GD 850W is a non-modular ATX 3.1 power supply with 80 PLUS Gold certification and a PCIe 12V-2x6 connection. It suits a desktop whose actual power requirement and connector layout have been checked, with fixed black cables rather than a detachable cable panel.

The exact VITA-850GD specification lists a 140mm-long housing, 120mm HYB-bearing fan and 100-240V AC input. Allow space for cable bends and verify the complete CPU/GPU power requirements; an 850W label or a newer connector alone does not establish compatibility with every graphics card or system.

Best For: Planned 850W desktops, Gold-efficiency builds, Fixed-cable layouts, ATX PSU replacements, Verified 12V-2x6 systems, Measured compact PSU bays

DETAIL SPECIFICATION

TECHNICAL FEATURES

Gold certification with a defined output

80 PLUS Gold is an efficiency classification, not an assurance that every PC is correctly sized for 850W. Estimate the complete system load and consider the graphics-card manufacturer guidance.

A native 12V-2x6 option

The exact model provides one 12V-2x6 connector as well as four PCIe six-plus-two-pin connectors across two cables. Match the connector and cable configuration to the exact card and follow insertion/bend instructions.

Fixed cables require routing space

Non-modular wiring keeps the cables attached to the PSU. Plan storage for unused leads and adequate clearance beyond the 140mm housing, especially in a tight PSU compartment.

Exact-model cooling and protection

The manufacturer lists a 120mm HYB-bearing fan and OVP, OCP, OPP, OTP, SCP, UVP, SIP and NLO protections. These features do not remove the need for sound electrical installation and correctly matched components.

🔎 Technical Conclusion

Power / Efficiency:
850W rated output with 80 PLUS Gold certification; efficiency varies by operating conditions.

Form Factor:
ATX12V V3.1; 140 x 150 x 86mm housing, with additional cable-routing room required.

Cabling:
Non-modular fixed black cables; reserve space for unused leads and safe bends.

Connectivity:
One 12V-2x6 connection plus exact CPU, PCIe and peripheral cable set; verify the actual system requirements.

Cooling / Protection:
120mm HYB fan and the listed eight protection functions; no silent-operation guarantee.

Overall Positioning:
An 850W fixed-cable PSU for a properly sized desktop, not a universal GPU compatibility promise.

✅ Suitable For

• Builders with a verified 850W power plan
  Check complete system load and the exact CPU/GPU guidance before selecting the wattage.
• Users replacing an ATX PSU
  Measure the bay and cable exit space and use this unit own fixed cables and correct connectors.
• Owners of a verified 12V-2x6 graphics card
  Confirm the card requirements and follow safe connector seating and bend instructions.
• Builders comfortable with fixed cabling
  Plan unused-lead storage and airflow so attached cables do not obstruct fans or components.
