HYTE Y70 Touch Infinite Black Cherry Dual-Chamber ATX PC Case with 14.9-inch Touchscreen (CS-HYTE-Y70TTI-RB)

A Black Cherry Showcase with an Integrated Interactive Display

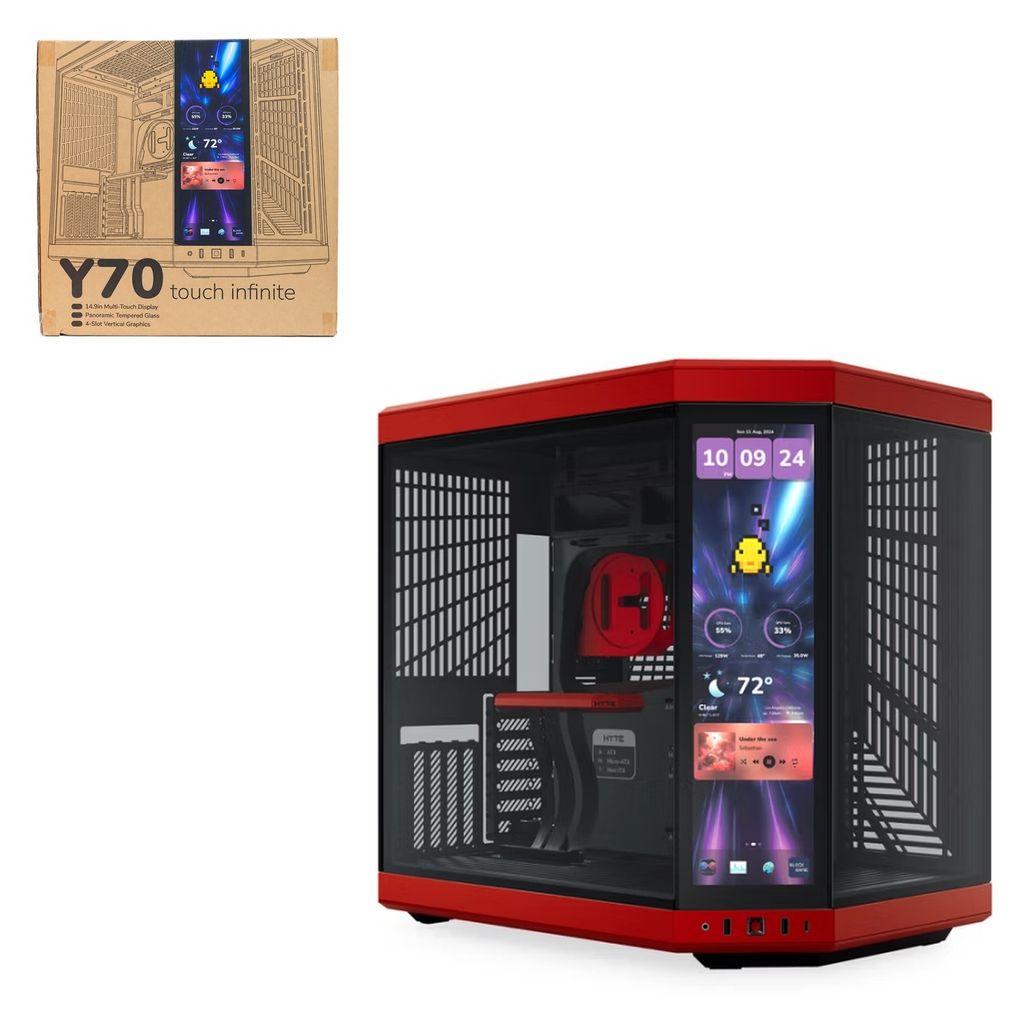

HYTE Y70 Touch Infinite Black Cherry combines a red exterior and black interior with a built-in 14.9-inch IPS touchscreen. This dual-chamber ATX case is aimed at a separately configured showcase desktop where visible component placement and a customizable display are part of the build, rather than an enclosure that disappears under the desk.

The 682 x 2560 display supports 60Hz operation and ten-point touch, while the included PCIe 4.0 x16 riser supports a vertical graphics-card layout. The case offers substantial cooling space, but fans, cooling hardware and PC components must be selected separately. Plan its 470 x 320 x 470mm footprint and every card, cable and radiator clearance before buying.

Best For: Showcase desktop builds, Red-and-black themes, Touchscreen customization, Vertical GPU layouts, Dual-chamber cable routing, Measured liquid-cooling projects

DETAIL SPECIFICATION

TECHNICAL FEATURES

An integrated display rather than a separate accessory screen

The Infinite configuration includes the 14.9-inch 2.5K IPS touchscreen. HYTE Nexus provides customization; the screen also needs the required display, USB and power connections in the completed system.

A planned vertical graphics-card layout

The colour-matched PCIe 4.0 x16 riser is included. Check card length, thickness, power-cable bend and adjacent cooling together; a maximum enclosure dimension is not a guarantee for every assembled combination.

Cooling room without an implied fan bundle

The chassis provides top, side, rear and bottom mounting options. Select fans and radiators separately and account for their combined thickness instead of assuming every advertised maximum fits simultaneously.

Dual chambers for a clean component view

A separate rear area supports power-supply and cable organization, while the panoramic glass presents the main components. The case is large enough that desk and service access should be measured before installation.

🔎 Technical Conclusion

Case Format:
Dual-chamber ATX mid tower in Black Cherry red and black.

Airflow / Cooling:
Up to ten fan positions with substantial top/side radiator space; cooling components chosen separately.

Component Clearance:
422mm card length, 105mm thickness, 180mm CPU cooler and 235mm PSU limits; verify combined fit.

Build / Connectivity:
Integrated 14.9-inch 2.5K touchscreen and PCIe 4.0 x16 riser; front USB-C, USB-A and audio.

Physical / Installation:
470 x 320 x 470mm, 70.7L; plan display connections, vertical GPU cabling and service space.

Overall Positioning:
A visual showcase enclosure for a carefully planned custom desktop, not a complete gaming PC.

✅ Suitable For

• Builders seeking a red-and-black showcase
  The Black Cherry exterior and dark interior establish the colour theme without implying other themed components are included.
• Users interested in an interactive case screen
  Plan the required display connection, USB and power wiring and use supported customization software.
• Vertical GPU enthusiasts
  Check exact card dimensions and power cable routing with the included PCIe 4.0 riser layout.
• Cooling-focused custom builders
  Select compatible fan and radiator combinations after measuring the complete assembly.
