JONSBO TK-1 Black Curved-Glass Micro-ATX PC Case (100052725417)

Showcase a Compact Build Through One Curved Glass Wrap

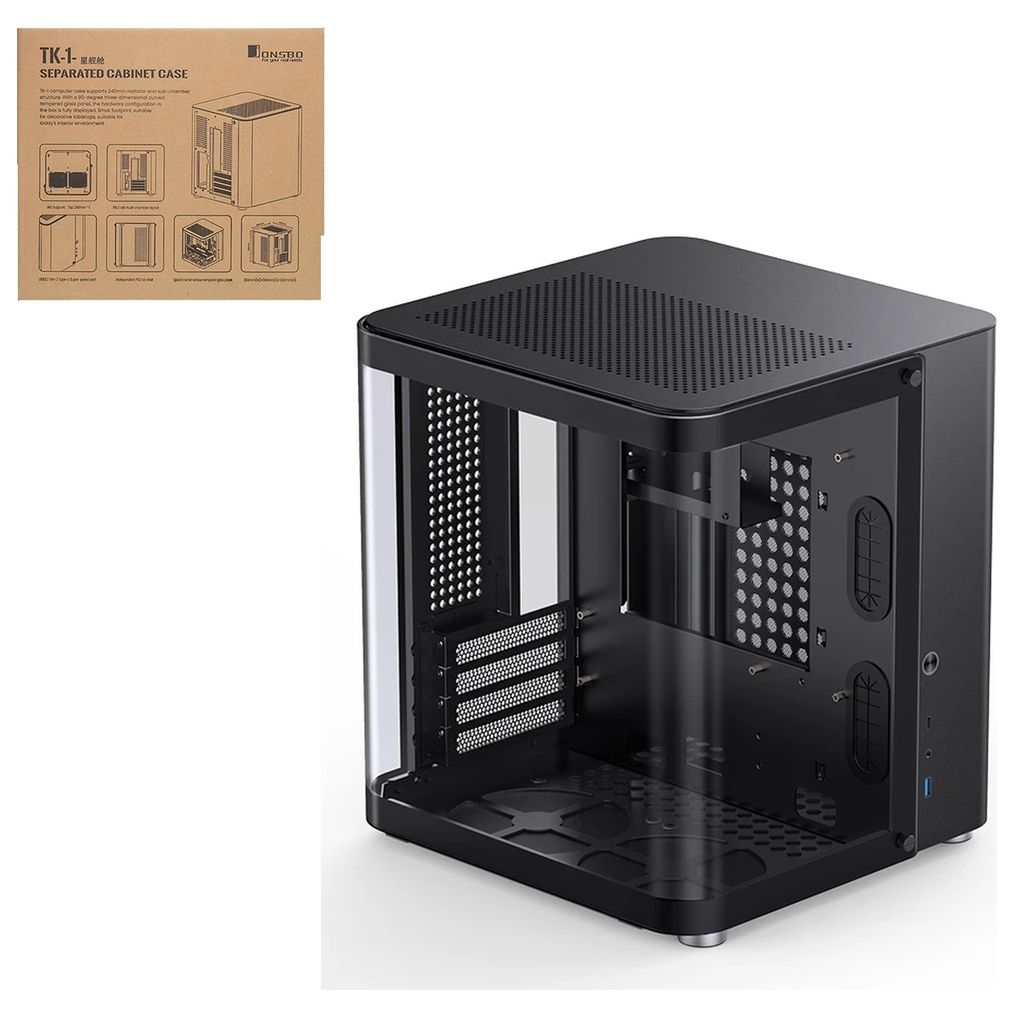

JONSBO TK-1 Black is a compact dual-chamber PC case with an aluminium-alloy outer shell and a curved tempered-glass viewing panel. It suits a carefully planned Micro-ATX or Mini-ITX desktop where the computing hardware is visible from multiple angles while the PSU and storage occupy a separate chamber.

Its compact layout imposes real limits: graphics cards must fit within 280mm, CPU coolers within 165mm and the ATX power supply within 200mm. Fans, the PSU, CPU cooler and all computing components are separate purchases. Measure the complete cooling and cable arrangement before assembly rather than treating a small-board label as a fit guarantee.

Best For: Black compact desktops, Micro-ATX projects, Mini-ITX systems, Curved-glass showcases, Measured 240mm AIO layouts, Tidy dual-chamber builds

DETAIL SPECIFICATION

TECHNICAL FEATURES

Separate visible hardware from service space

The dual-chamber arrangement separates the PSU and storage area from the main component display. Route cables deliberately so the curved-glass view remains tidy and connectors stay accessible.

A compact chassis needs exact measurements

The 280mm GPU limit is particularly important for graphics-card selection. Check card length, thickness, power-cable bend and cooling components together before purchase.

Choose cooling rather than assume it is bundled

Two top and two bottom 120mm mounting positions are available, with a top 240mm radiator option. Fans and the CPU cooler are not included; do not interpret demonstration builds as supplied equipment.

Handle the curved panel carefully

The official glass specification includes a protective film that should remain in place. Follow the installation instructions when removing, supporting and refitting the panel.

🔎 Technical Conclusion

Case Format:
Black compact dual-chamber Micro-ATX case with aluminium-alloy shell and curved glass.

Included Cooling:
No bundled fan or CPU cooler claimed; four optional 120mm fan positions.

Board / Clearance:
Mini-ITX / Micro-ATX, GPU up to 280mm and CPU cooler up to 165mm.

Power / Connectivity:
Separate ATX PSU up to 200mm; front USB-C Gen2, USB-A and combo audio.

Physical / Installation:
299 x 310 x 345mm; top 240mm radiator option requires a complete fit check.

Overall Positioning:
A compact showcase enclosure for a deliberately selected desktop configuration, not a complete PC.

✅ Suitable For

• Compact system builders
  Select exact hardware dimensions before deciding the case and cooling layout.
• Micro-ATX and Mini-ITX users
  Check the board, graphics card and power-cable routing together.
• Black showcase-build owners
  The curved glass and aluminium shell suit tidy layouts without implying included RGB equipment.
• Measured liquid-cooling planners
  Verify the top 240mm assembly, fan depth and all nearby components against the installation guide.
