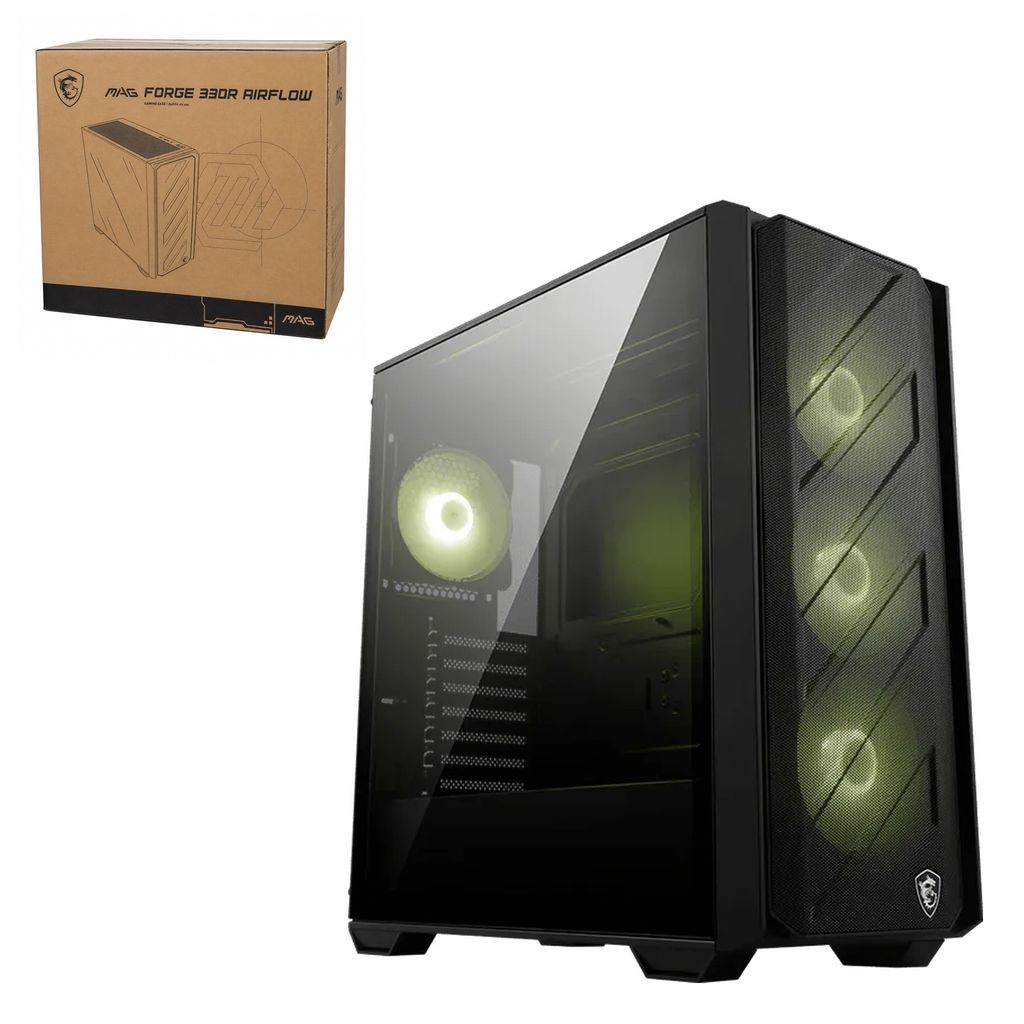

MSI MAG FORGE 330R AIRFLOW ATX Mid-Tower PC Case with 4 ARGB Fans (306-7G23R42-HH9)

An ATX Airflow Foundation with Four Included ARGB Fans

MSI MAG FORGE 330R AIRFLOW is a black ATX mid-tower enclosure for a separately configured desktop, combining a mesh front, tempered-glass component view and four pre-installed 120mm ARGB fans. It suits builders who want supplied front-and-rear ventilation with room to plan a larger cooling arrangement.

The case supports ATX, Micro-ATX and Mini-ITX boards, with official clearance limits of 390mm for graphics-card length and 160mm for CPU-cooler height. Top radiator support extends to 360mm, but fan stacks, power cables, drive trays and motherboard components still require a complete fit check. No motherboard, GPU, CPU cooler, PSU or complete PC is included.

Best For: ATX desktop builds, ARGB component displays, Mesh-front airflow layouts, Top-radiator planning, Four-fan starting setups, Measured chassis upgrades

DETAIL SPECIFICATION

TECHNICAL FEATURES

A supplied four-fan starting point

Three front 120mm ARGB fans and one rear 120mm ARGB fan are already installed. Actual cooling and noise depend on the components, fan control and installation; no temperature or performance result is guaranteed.

Separate mounting choices for a planned cooling system

The chassis offers top, front, rear, side and PSU-shroud fan positions, with top radiator support up to 360mm. These are configuration options, not an eleven-fan bundle or a promise that all radiator and component limits can be used together.

Two front 5Gbps USB-A connections

The front I/O provides two USB 5Gbps Type-A ports alongside separate microphone and audio connections. Confirm the appropriate motherboard headers; a USB-C front port is not claimed.

Room for ATX without ignoring clearances

A 390mm graphics-card limit and 160mm CPU-cooler limit guide component selection. The 200mm PSU allowance requires removing the shared drive tray, and power cables need their own routing space.

🔎 Technical Conclusion

Case Format:
Black mid tower for ATX, Micro-ATX and Mini-ITX boards.

Airflow / Cooling:
Mesh-front layout with four installed 120mm ARGB fans and multiple expansion mounting positions.

Component Clearance:
390mm GPU length and 160mm cooler height; 200mm PSU limit applies without the shared drive tray.

Build / Connectivity:
Tempered-glass component view, two front USB-A 5Gbps connections and separate microphone/audio.

Physical / Installation:
472.5 x 210 x 498mm; check radiator thickness, board components and cables together.

Overall Positioning:
An airflow-oriented ATX enclosure with supplied ARGB fans for a planned custom desktop.

✅ Suitable For

• Builders starting an ATX system
  Choose an exact compatible motherboard and verify the full card, cooler and cable layout.
• Users wanting installed lighting fans
  The four supplied ARGB fans establish a starting configuration without an extra fan bundle claim.
• Builders planning top-mounted liquid cooling
  Check the complete radiator and fan stack against motherboard and memory clearance.
• Users replacing an existing chassis
  Measure all reused components and account for the drive-tray condition of the PSU length limit.
