A Compact Mesh-Front Build with Four Included ARGB Fans

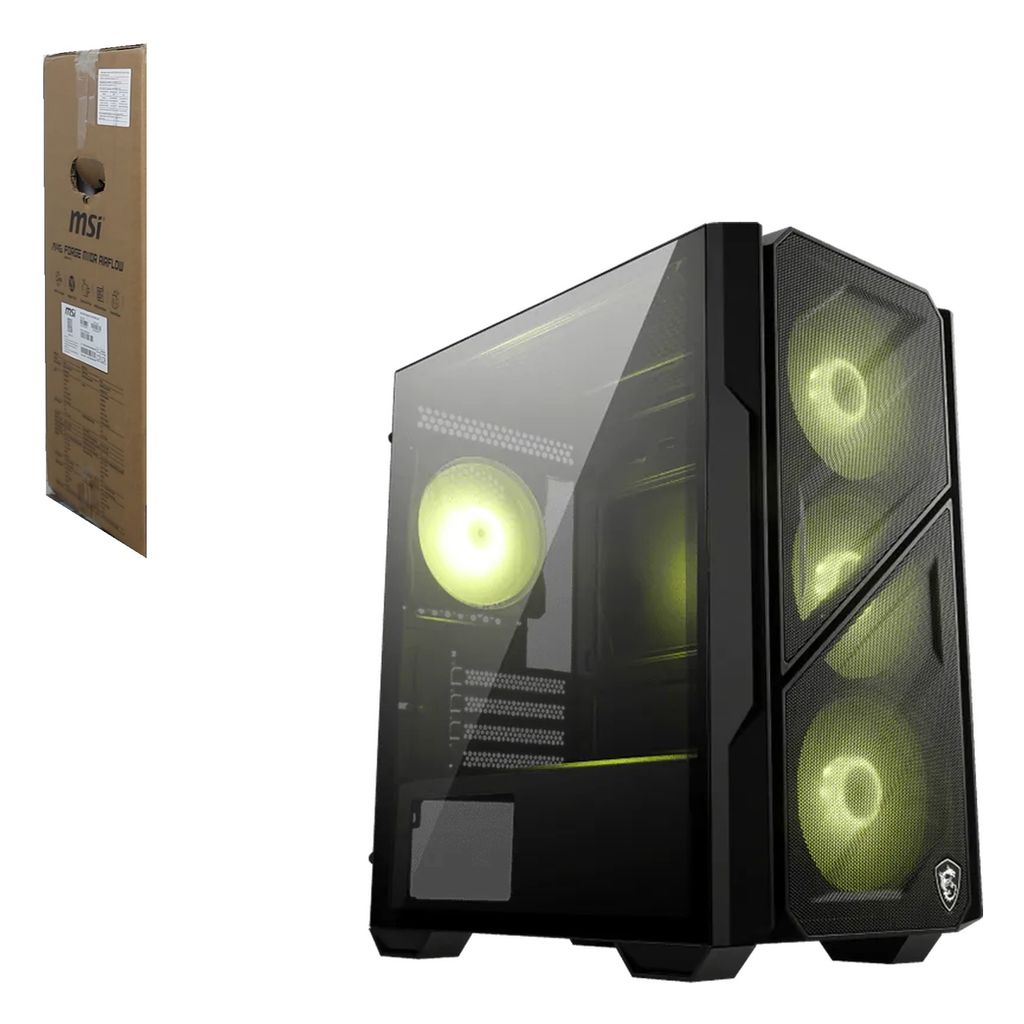

MSI MAG FORGE M110R AIRFLOW brings a ventilated front panel, tempered-glass side and four pre-installed 120mm ARGB fans to a compact Micro-ATX or Mini-ITX desktop build. It suits users who want an illuminated component view and a supplied starting fan arrangement without choosing a large ATX tower.
The 388 x 200 x 423mm mini tower supports a CPU cooler up to 160mm tall and a graphics card up to the official 300mm limit. A six-fan ARGB control board and separate lighting switch simplify illumination control, but this remains an empty PC enclosure: check the complete motherboard, graphics card, cooler, PSU and cable combination before ordering.
Best For: Micro-ATX gaming builds, Mini-ITX desktops, Compact illuminated systems, Mesh-front enclosures, Four-fan starting layouts, Measured replacement builds
DETAIL SPECIFICATION
| Brand / Model | MSI MAG FORGE M110R AIRFLOW |
| Exact part | 306-7G20R44-HH9 |
| Colour | Black |
| Case format | Mini tower |
| Motherboard support | Micro-ATX / Mini-ITX |
| Dimensions | 388 x 200 x 423mm (D x W x H) |
| Net weight | 4.27kg |
| GPU length limit | Up to 300mm official limit; verify card/cable and front-cooling fit |
| CPU cooler limit | Up to 160mm |
| PSU support | ATX; up to 180mm, or 300mm without the 3.5-inch HDD tray; cable clearance separate |
| Expansion slots | 4 |
| Drive positions | 2 x 2.5-inch; 1 x 3.5-inch; 1 shared 2.5-inch / 3.5-inch mount |
| Included fans | Front: 3 x 120mm ARGB; rear: 1 x 120mm ARGB |
| Fan support | Top: 2 x 120mm; front: 3 x 120mm; rear: 1 x 120mm |
| Radiator support | Top: 120 / 240mm; front: 120 / 240mm; rear: 120mm; verify combined fit |
| Front I/O | 1 x USB 5Gbps Type-A; 2 x USB 2.0 Type-A; microphone input; audio output |
| Controls | Power, reset and LED switch |
| Lighting controller | Pre-installed 1-to-6 ARGB control board; 26 built-in lighting effects |
| Side panel | 3mm tempered glass |
| Dust filtering | Top magnetic filter and bottom removable filter |
TECHNICAL FEATURES
Four installed fans as the starting arrangement
Three front 120mm ARGB fans and one rear 120mm ARGB fan are included. Plan fan speeds and airflow for the actual components rather than expecting a guaranteed temperature or noise result.
Mesh front with a glass component view
The front mesh provides an intake path while the tempered-glass side presents the interior. Leave space around the vents and service the top and bottom filters as part of normal maintenance.
Lighting control without guessing motherboard features
The included 1-to-6 ARGB board provides lighting modes through the LED switch and uses SATA power. Check the exact wiring requirements before connecting any additional fans or motherboard lighting headers.
Compact dimensions call for a complete fit check
Use the official 300mm GPU and 160mm cooler limits. A radiator, fan stack, drive tray or power cable can reduce practical space, so independently advertised maxima should not be treated as simultaneously guaranteed.
🔎 Technical Conclusion
Case Format:
Black mini tower for Micro-ATX and Mini-ITX boards.
Airflow / Cooling:
Mesh front, four included 120mm ARGB fans and up to six fan positions.
Component Clearance:
Official 300mm GPU and 160mm CPU-cooler limits; ATX PSU clearance depends on the HDD tray.
Build / Connectivity:
Tempered-glass side, ARGB board, one 5Gbps USB-A, two USB 2.0 ports and separate audio/mic.
Physical / Installation:
388 x 200 x 423mm; measure complete components, cooling and cable routing together.
Overall Positioning:
A compact, illuminated enclosure with a useful included fan setup, not a complete PC.
✅ Suitable For
- Compact gaming-system builders
Use a compatible Micro-ATX or Mini-ITX board and measure the complete GPU and cooling setup. - Users wanting supplied ARGB fans
Four fans and the control board provide a starting lighting arrangement without implying extra fans are included. - Builders who prefer a visible interior
The tempered-glass side displays separately purchased components while the front stays ventilated. - Users transferring an existing desktop
Check board size, cooler height, GPU length and PSU cabling before moving components into this smaller case.
