NZXT H3 Flow (2025) White Micro-ATX Airflow PC Case with F120Q Fan (CC-H31FW-01)
- Regular price
- RM 269.00
- Sale price
- RM 269.00
- Regular price
-
RM 0.00
Share
Build a White Compact Desktop Around Clear Airflow Paths

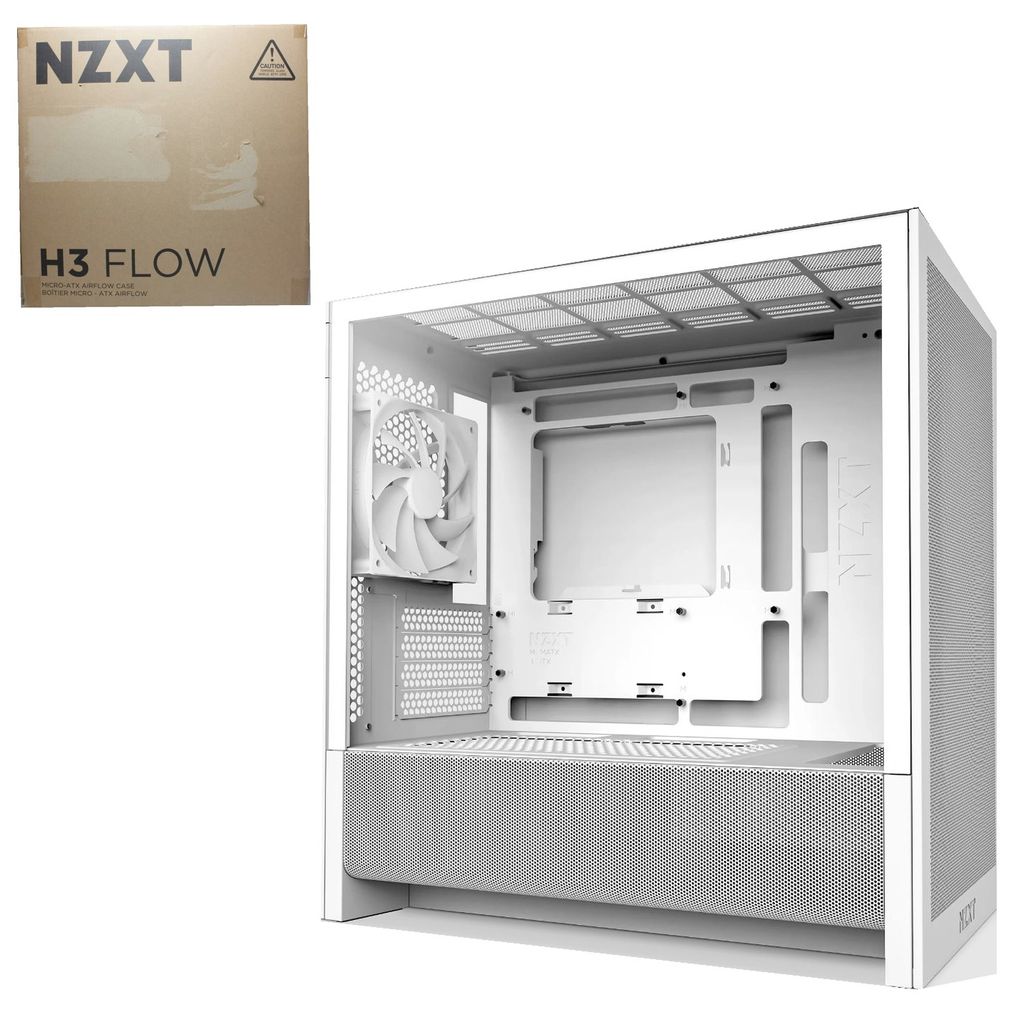

NZXT H3 Flow (2025) White is a 35-litre Micro-ATX enclosure with fine steel mesh, a clear tempered-glass side panel and one included rear F120Q case-version fan. It is intended for a separately configured compact desktop where component fit, cable routing and cooling layout are planned together.
GPU space depends on the front cooling arrangement: up to 377mm without front fans, 352mm with front fans or 317mm with a front radiator and fans. Additional fans, the PSU, CPU cooler and all computing components are separate purchases. The included three-pin fan is not a four-pin PWM or RGB model.
Best For: White compact desktops, Micro-ATX systems, Mini-ITX builds, Verified back-connect boards, Planned liquid cooling, Mesh-airflow projects
DETAIL SPECIFICATION
| Brand / Model | NZXT H3 Flow (2025) White |
| Exact model | CC-H31FW-01 |
| Form factor / Volume | Micro-ATX case / 35.0L |
| Materials | SGCC steel and clear tempered glass |
| Motherboards | Micro-ATX / Mini-ITX; compatible Micro-ATX back-connect designs supported |
| Dimensions | 400 x 225 x 389mm (H x W x D) |
| Listed weight | 5.017kg; not entered as verified shipping weight |
| CPU-cooler height limit | 170mm |
| GPU clearance | 377mm without front fans; 352mm with front fans; 317mm with front radiator and fans |
| PSU allowance | ATX, up to 185mm; PSU not included |
| Cable-routing space | Up to 31.5mm |
| Expansion slots | 4 |
| Drive positions | 1+2 x 2.5-inch; 1 x 3.5-inch |
| Front USB | 1 x USB 3.2 Type-A and 1 x USB 3.2 Gen2x2 Type-C; matching motherboard headers required |
| Front / top fan mounts | Each: 2 x 120mm or 2 x 140mm |
| Bottom / rear fan mounts | Bottom 2 x 120mm; rear 1 x 120mm |
| Radiator support | Front up to 280mm; top up to 240mm |
| Radiator + fan thickness | Front up to 63mm; top up to 70mm |
| Included rear fan | 1 x F120Q (Case Version), 3-pin DC |
| Listed included-fan speed | 1350 ±150rpm |
| Listed fan airflow / pressure | 60.2 CFM / 1.05mmH2O |
TECHNICAL FEATURES
Match the graphics card to the cooling plan
The three official GPU limits reflect different front cooling assemblies. Measure the entire card and its power cable route after deciding the fan and radiator configuration.
A simple rear exhaust starting point
One F120Q case-version fan is included. It uses a three-pin DC connection; additional fans and lighting hardware are not implied by the case name or demonstration builds.
Back-connect support still needs a fit check
The chassis supports compatible Micro-ATX rear-connector designs. Confirm the exact board, cable bend clearance and routing space rather than relying only on a back-connect label.
Mesh and accessible panels support maintenance
Fine mesh, a ventilated PSU shroud and removable panels provide access and airflow options. Keep the ventilation paths clear and plan PSU orientation according to the official installation guidance.
🔎 Technical Conclusion
Case Format:
White 35L Micro-ATX chassis with a clear tempered-glass side.
Included Cooling:
One rear F120Q case-version three-pin DC fan; additional fans separate.
Board / Clearance:
Micro-ATX / Mini-ITX; GPU limit varies from 317 to 377mm with front cooling layout.
Power / Connectivity:
Separate ATX PSU up to 185mm; front USB-A and USB-C Gen2x2 with compatible headers.
Physical / Installation:
400 x 225 x 389mm; 170mm CPU-cooler limit and configuration-dependent radiator thickness.
Overall Positioning:
A compact white airflow case for a carefully measured custom build, not a complete PC.
✅ Suitable For
- Micro-ATX desktop builders
Choose an exact board and component layout within the case clearances. - Mini-ITX users seeking more cooling options
Plan unused space, fan positions and cabling rather than assuming every part fits. - Back-connect system planners
Confirm the exact Micro-ATX board and rear cable routing clearance before assembly. - White-theme custom-PC owners
Coordinate component colours and buy additional fans or lighting separately if required.
