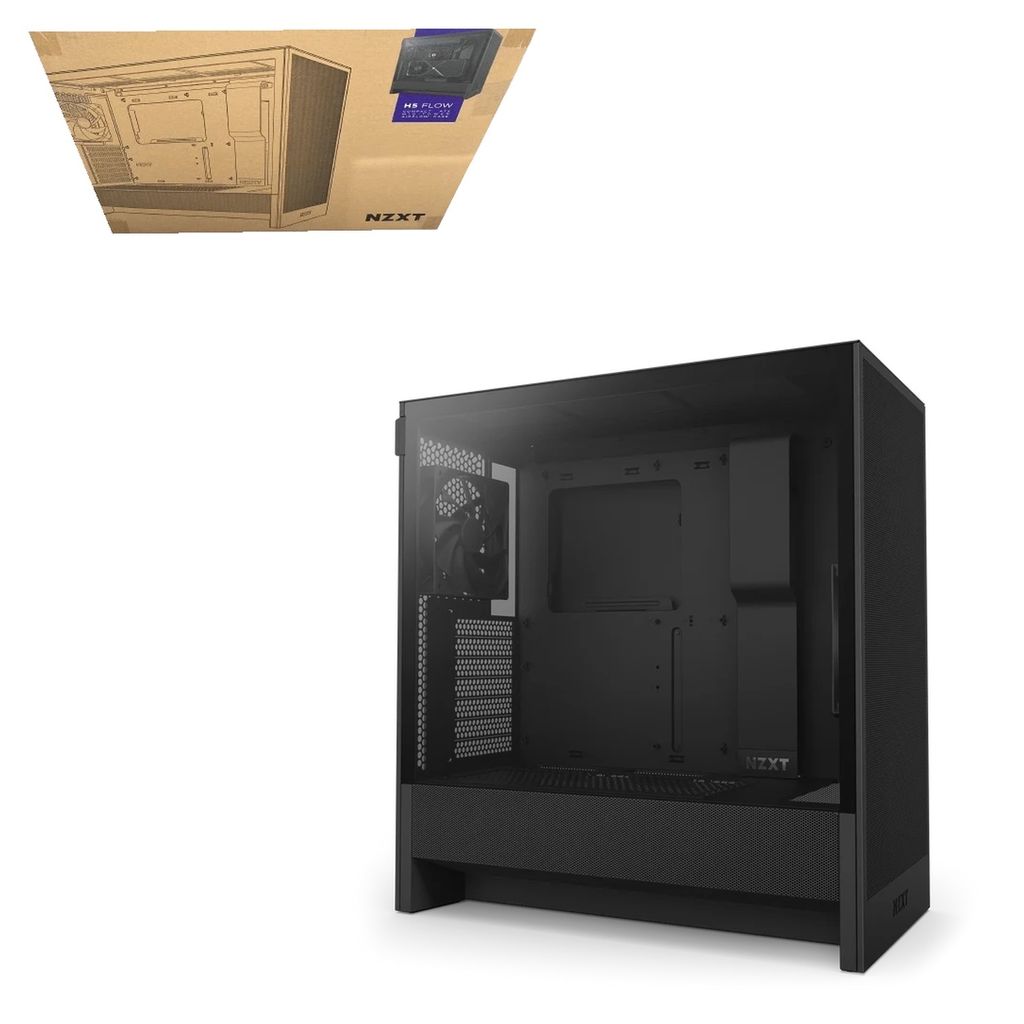

NZXT H5 Flow (2024) Black ATX Mid-Tower Case with 2 F120Q Fans (CC-H52FB-01)

Build a Compact Black ATX Desktop with a Clear Airflow Plan

NZXT H5 Flow (2024) Black is a compact mid-tower chassis for a measured ATX desktop build, with fine mesh panels, a ventilated PSU shroud and two included F120Q Case Version fans. The exact CC-H52FB-01 configuration gives you one front intake fan and one rear exhaust fan without presenting a complete computer as part of the package.

Its layout accommodates selected E-ATX boards up to 277mm wide, ATX, Micro-ATX and Mini-ITX, with room for a planned front 360mm or top 240mm radiator. Check all component clearances together: radiator thickness, fan placement, GPU power cables and PSU leads can affect the final fit, and this model does not support back-connect motherboards.

Best For: Compact ATX desktops, Black airflow builds, Measured GPU upgrades, Planned liquid cooling, Organised cable routing, Standard-connector motherboards

DETAIL SPECIFICATION

TECHNICAL FEATURES

Mesh airflow with two starting fans

A front and rear F120Q Case Version fan are included. Additional bottom fans are not part of this configuration; plan extra cooling separately if the actual component load requires it.

Compact does not mean universal fit

The manufacturer lists a 410mm GPU clearance, 170mm CPU-cooler clearance and up to 200mm PSU length. Radiators, leads and cable bends still need to be considered as a combined layout.

A deliberate liquid-cooling layout

The case supports a front radiator up to 360mm and a top radiator up to 240mm. Confirm the exact radiator-plus-fan thickness and nearby component clearances rather than selecting by radiator length alone.

Standard motherboard routing

Cable channels, hooks and straps help keep a conventional build organised. This H5 Flow generation does not provide back-connect motherboard support.

🔎 Technical Conclusion

Case / Form Factor:
Compact ATX mid-tower; Black SGCC-steel chassis with dark tinted tempered glass.

Component Compatibility:
Selected E-ATX up to 277mm, ATX, Micro-ATX and Mini-ITX; no back-connect support.

Cooling / Airflow:
Fine mesh, ventilated shroud and two included F120Q Case Version fans.

Expansion / Storage:
Seven expansion slots with two 2.5-inch and one 3.5-inch drive positions.

Connectivity / Installation:
USB Type-A, USB Type-C and headset jack; check component and cable clearances before assembly.

Overall Positioning:
A compact airflow-focused Black chassis for a planned desktop, not a complete PC or an unrestricted hardware-fit guarantee.

✅ Suitable For

• Builders planning a compact ATX desktop
  Check the board width and conventional connector layout before choosing the chassis.
• Users upgrading a graphics card
  Measure the installed card with the planned front cooling and power-cable space.
• Builders planning a front or top radiator
  Check radiator length, thickness and adjacent component clearance together.
• Users wanting a restrained Black build
  The dark tinted glass and non-RGB included fans suit a subtle presentation; extra lighting is optional and separate.
