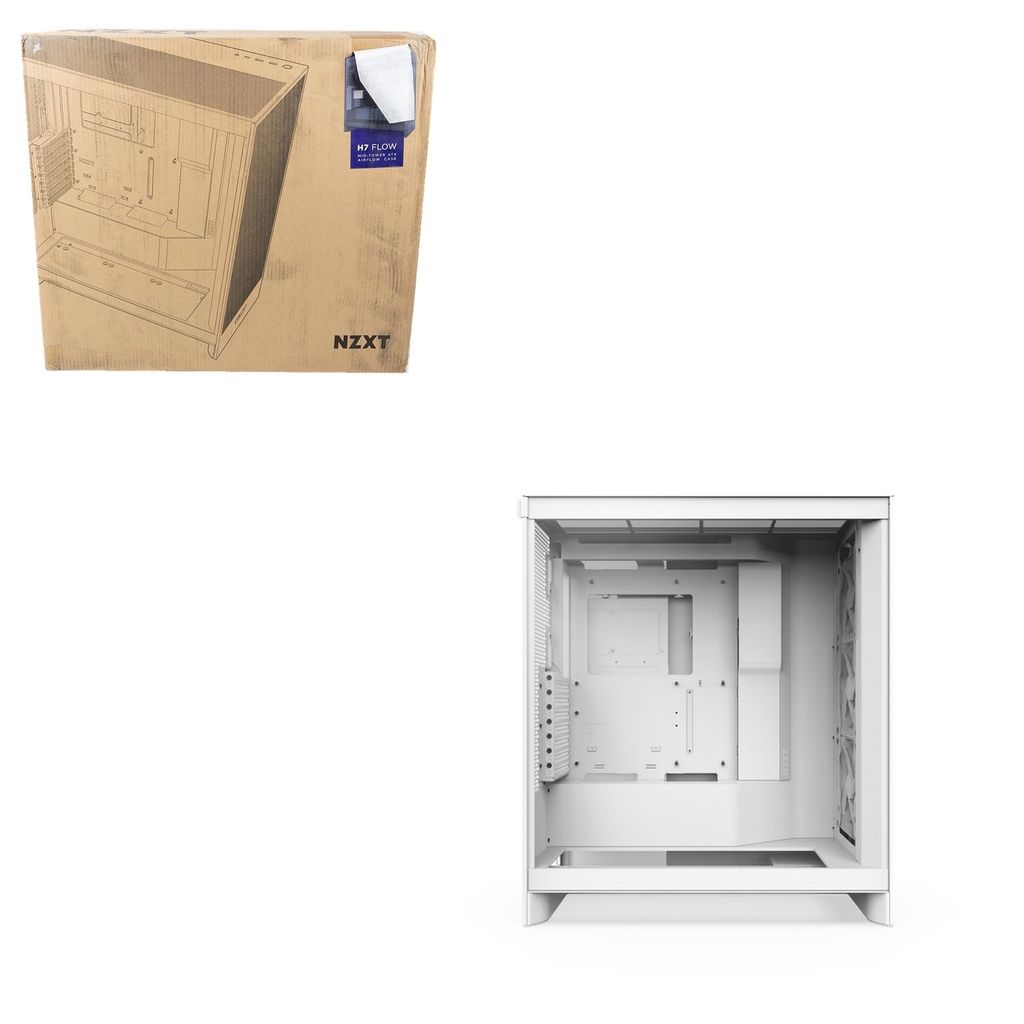

NZXT H7 Flow (2024) White ATX Mid-Tower Case with 3 F120Q Fans (CM-H72FW-01)

Plan a White Airflow Build with a Clear View and Three Front Fans

NZXT H7 Flow (2024) White is a mid-tower PC case with high-performance mesh panels, ultra-clear tempered glass and three front-mounted F120Q case-version fans. The exact CM-H72FW-01 is the standard non-RGB configuration, giving a defined starting point for a white desktop build.

A vertical ATX PSU layout creates space for optional bottom intake fans, while radiator support extends up to 420mm at the front and 360mm at the top. Measure the complete system rather than combining all maximum figures: GPU length, cooler height, radiator thickness, tubing and PSU cables affect the final fit. This is a chassis with its listed fans and accessories, not a complete computer.

Best For: White airflow builds, ATX gaming desktops, Compatible E-ATX layouts, Creator workstations, Planned liquid cooling, Organised cable routing

DETAIL SPECIFICATION

TECHNICAL FEATURES

A clear standard fan configuration

Three F120Q case-version fans are included at the front. They use three-pin DC connections; do not confuse this model with the RGB version single-frame fan assembly or a retail PWM fan.

Optional bottom airflow for the GPU area

The vertical PSU arrangement leaves space for up to three optional 120mm bottom fans. Actual cooling depends on the card and airflow layout, and these additional fans are not part of the included bundle.

Plan radiator combinations carefully

Front and top radiator options offer flexibility, but motherboard, memory, fittings and GPU space still matter. Check thickness and mounting restrictions before combining multiple large components.

Access for assembly and maintenance

Tool-less panel access and cable-management channels, hooks and straps help organise the build. Confirm board layout and wiring first; back-connect motherboards are not supported.

🔎 Technical Conclusion

Form Factor / Layout:
White mid-tower for E-ATX up to 277mm, ATX, Micro-ATX and Mini-ITX boards.

Airflow / Included Fans:
Mesh ventilation with three front F120Q 120mm DC fans; other fan positions are optional.

Cooling Compatibility:
Front radiators up to 420mm and top up to 360mm, with configuration-dependent limits.

Component Clearance:
185mm CPU cooler, 410mm GPU and 200mm ATX PSU maximums; verify simultaneous clearances.

I/O / Expansion:
Two USB-A, one USB-C, headset jack and seven expansion slots.

Overall Positioning:
A standard non-RGB white airflow chassis for a planned desktop, not a prebuilt PC or universal-fit guarantee.

✅ Suitable For

• White desktop builders
  Use the ultra-clear glass and exact white chassis to display selected components without adding unlisted hardware.
• Users planning a larger graphics card
  Check actual card length, power cable bends and cooling clearance within the chosen layout.
• Builders selecting liquid cooling
  Measure the radiator, fan thickness, fittings and motherboard/RAM space before installation.
• Owners wanting serviceable cable management
  Use the panel access and routing features while verifying the board form factor and PSU cable lengths.
