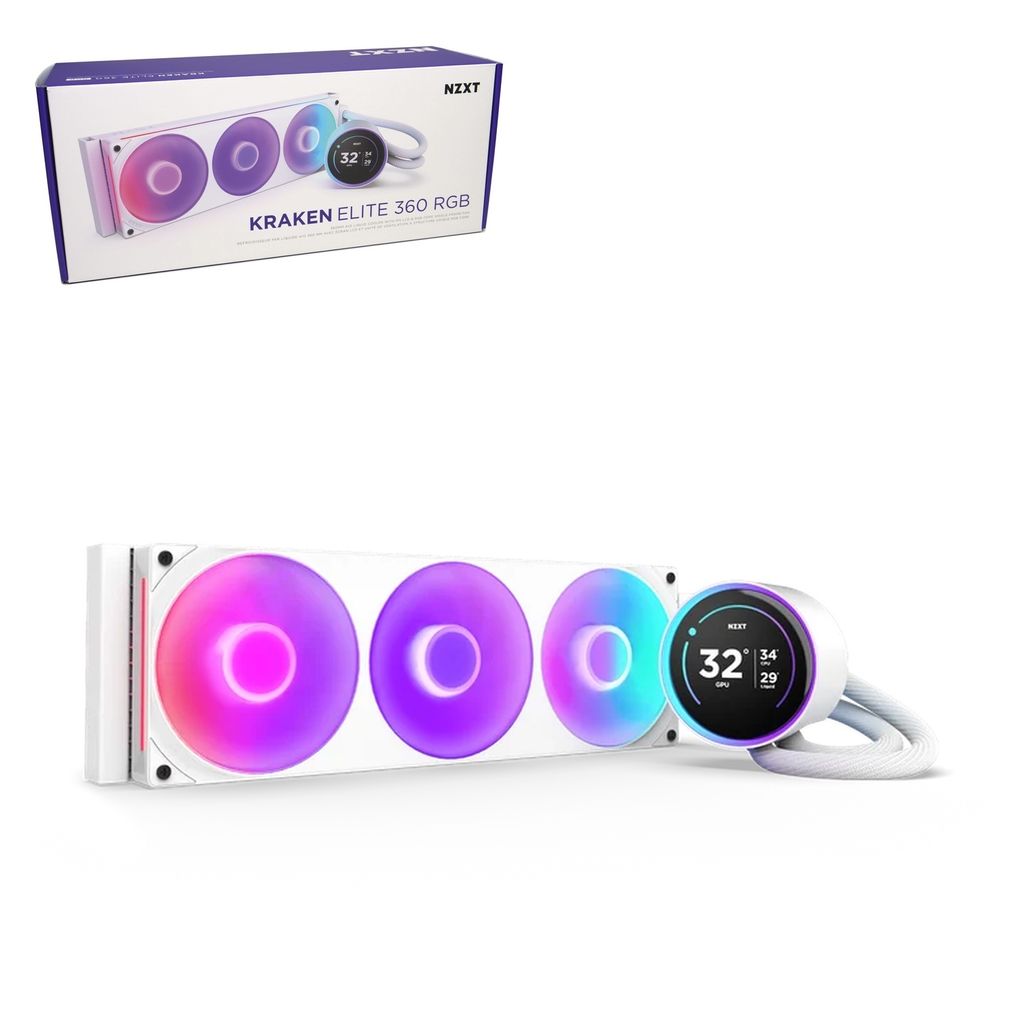

NZXT Kraken Elite 360 RGB V2 White 360mm AIO CPU Cooler with 2.72-inch IPS LCD (RL-KR36E-W2)

Build Around a Large IPS Display and a Unified White RGB Fan Array

NZXT Kraken Elite 360 RGB V2 White combines the NZXT Turbine pump, a 2.72-inch IPS LCD and an F360 RGB Core single-frame fan array. The exact RL-KR36E-W2 model is intended for a desktop with a verified 360mm mounting location and a white visual theme.

The LCD offers 640 x 640 resolution at 60Hz, while the aluminium radiator measures 401 x 120 x 27mm and uses 420mm braided tubing. Confirm the complete mounting space, socket kit, wiring and NZXT CAM requirements. A larger screen and three-fan format do not guarantee a particular CPU temperature, noise level or gaming performance.

Best For: White showcase desktops, Large pump-head displays, 360mm-ready cases, Single-frame RGB layouts, Listed Intel or AMD sockets, CAM-based customisation

DETAIL SPECIFICATION

TECHNICAL FEATURES

A defined IPS display platform

The 2.72-inch display is specified at 640 x 640 pixels and 60Hz. Use compatible NZXT CAM software and required system connections for supported customisation rather than treating it as a standalone monitor.

A single-frame RGB fan assembly

The included F360 RGB Core array contains three fans within one frame. Its eight-pin PWM/RGB connection is not a generic motherboard RGB plug; follow the exact wiring instructions.

Turbine pump and copper contact plate

The manufacturer identifies its NZXT Turbine pump and copper cold plate for this V2 model. Thermal results still depend on CPU settings, mounting, case airflow and fan/pump control.

Plan the full 401mm radiator assembly

Allow room for the radiator, 26mm fan frame, fittings and a relaxed route for the 420mm tubing. Confirm the socket bracket kit and motherboard/header layout before installation.

🔎 Technical Conclusion

Cooling Type:
White 360mm AIO with NZXT Turbine pump and F360 RGB Core single-frame array.

Socket Compatibility:
Intel LGA1851 / 1700 / 1200 / 115X and AMD AM5 / AM4, with the correct supplied mounting kit.

Radiator / Clearance:
401 x 120 x 27mm radiator plus 360 x 120 x 26mm fan frame; fitting and tubing clearance is additional.

Fans / Control:
Three fans in one array; 500-2400rpm +/-250rpm and an eight-pin PWM/RGB connector.

Display / Installation:
2.72-inch IPS, 640 x 640 pixels, 60Hz; compatible CAM software and correct system wiring required.

Overall Positioning:
A display-led white cooling centrepiece for a properly planned desktop, without guaranteed temperature or benchmark claims.

✅ Suitable For

• Builders wanting a large on-pump screen
  Use the 2.72-inch IPS display for supported CAM customisation after confirming software and system requirements.
• Owners of a measured 360mm-ready case
  Check actual radiator length, fan depth and fitting/tubing space before committing to the mounting position.
• White RGB system enthusiasts
  Coordinate the exact White V2 cooler with the build while retaining the specified single-frame fan design.
• Intel or AMD platform upgraders
  Verify the exact socket, mounting hardware and all required connections before replacing the current cooler.
