NZXT S5 RGB (2026) White ATX Mid-Tower PC Case with 360mm Single-Frame RGB Reverse Fan (CC-S51FW-01)

A White Panoramic ATX Foundation with a Ready-Mounted RGB Intake

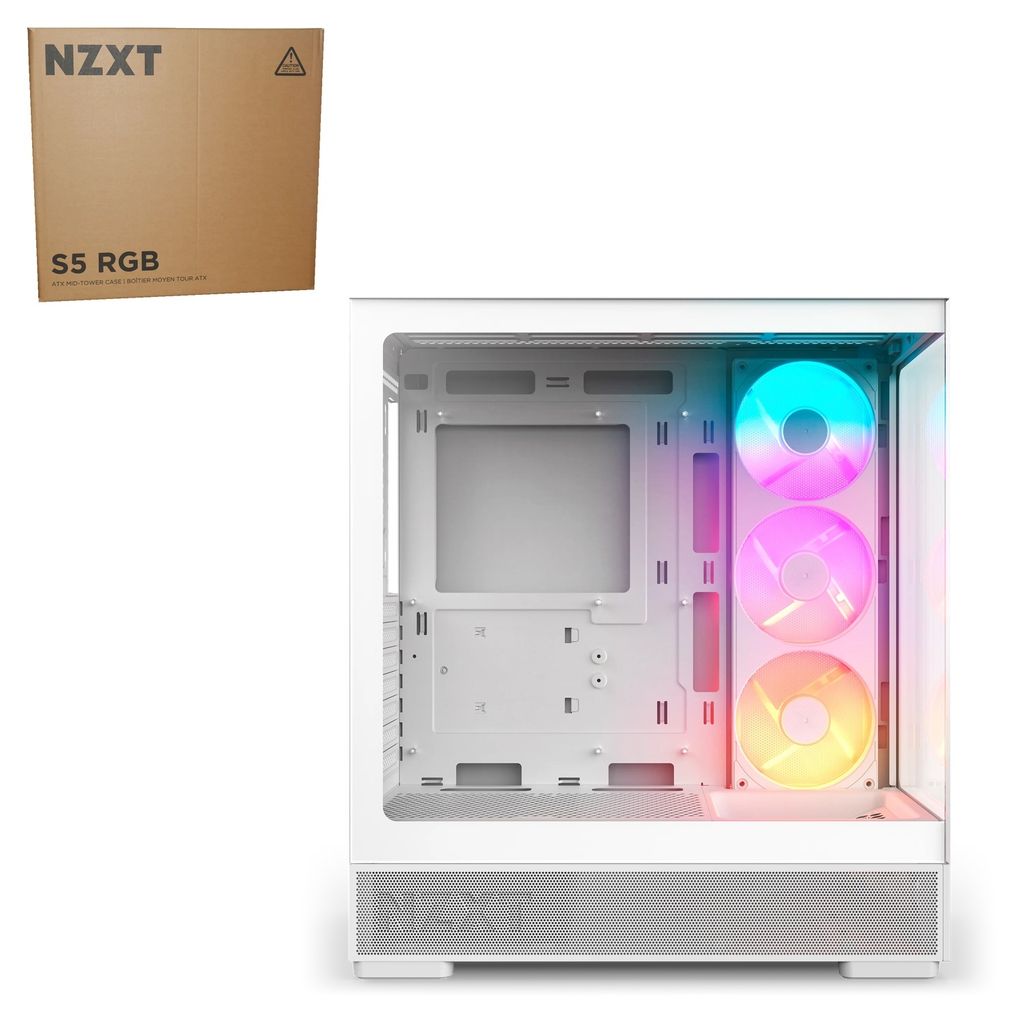

NZXT S5 RGB (2026) in white is a steel ATX mid-tower case for a separately configured desktop, with tempered glass across the front and left side. A pre-installed 360mm single-frame RGB reverse-fan unit supplies the side intake, giving the main component view an illuminated starting point without adding a complete cooling bundle.

This exact CC-S51FW-01 configuration is the standard S5 RGB, not the Deluxe: the rear and angled bottom fans are not included. The chassis supports a graphics card up to 415mm, a CPU cooler up to 162mm and a top radiator up to 360mm, subject to combined fit checks. It does not support back-connect motherboards, so select a conventional board and plan cables and additional exhaust cooling separately.

Best For: Panoramic ATX desktops, White component themes, Side-intake RGB layouts, Conventional motherboard builds, Measured 360mm cooling projects, Planned chassis upgrades

DETAIL SPECIFICATION

TECHNICAL FEATURES

One side-intake unit, three rotors

The standard S5 RGB includes one 360mm single-frame RGB reverse-fan unit rather than the Deluxe rear-and-bottom fan arrangement. Plan any additional exhaust or radiator fans for the actual system instead of assuming they are in the box.

Panoramic glass with a steel chassis

The front and left tempered-glass panels frame the component view while the right-side mesh supplies the intake path. Leave the intake space clear and handle removed glass panels on a suitable surface.

Modern front USB requires matching board headers

Two 5Gbps USB-A ports and a 20Gbps USB-C port offer convenient access. Their actual functionality and speed depend on compatible internal motherboard headers; the enclosure does not upgrade a missing board interface.

A conventional-board build with measured clearances

There is no back-connect motherboard support or vertical GPU kit support. Check the full cooler, card, PSU and cable combination, and add radiator/fan thickness to the top fit assessment rather than using each maximum independently.

🔎 Technical Conclusion

Case Format:
White steel ATX mid tower with front and left tempered-glass panels.

Airflow / Cooling:
Included right-side 360mm single-frame RGB reverse intake; rear and bottom fans chosen separately.

Component Clearance:
415mm GPU, 162mm CPU cooler and 200mm PSU limits; complete fit remains configuration-dependent.

Build / Connectivity:
Conventional ATX/mATX/ITX boards; two 5Gbps USB-A, one 20Gbps USB-C and headset connection.

Physical / Installation:
482 x 210 x 423mm, 42.8L and 6.14kg; no back-connect or vertical GPU kit support.

Overall Positioning:
A panoramic, RGB-ready enclosure for a planned custom desktop, not a complete PC or Deluxe fan bundle.

✅ Suitable For

• Builders seeking a panoramic component view
  The white finish and two glass panels frame separately purchased hardware.
• Users wanting an installed side intake
  The supplied single-frame three-rotor unit starts the cooling layout while additional fan positions remain available.
• Conventional ATX-system builders
  Choose an ATX, Micro-ATX or Mini-ITX board with standard connector placement and appropriate front-I/O headers.
• Users planning a measured chassis upgrade
  Confirm GPU, cooler, PSU, storage and complete radiator/fan clearance before transferring components.
