TRYX HOLO ARGB 360 White AIO Liquid CPU Cooler with Holographic Display (L-H360A-DM3M-G0W)

Give a White Cooling Build a Distinctive Optical Display Focal Point

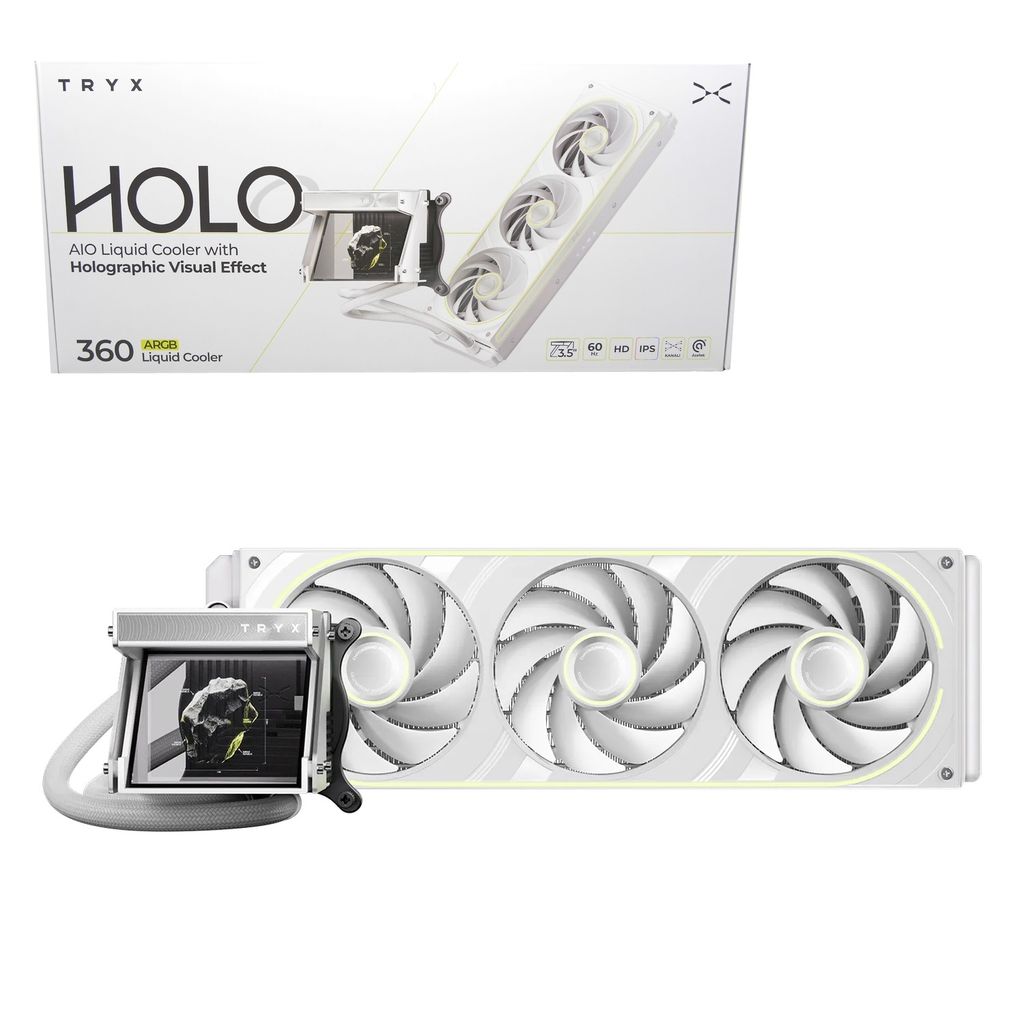

TRYX HOLO ARGB 360 White is a 360mm AIO CPU cooler with a holographic visual-effect pump head, a white radiator assembly and three fans integrated into one frame. It suits a compatible custom desktop where the CPU area is intended to stand out without changing the purchase into a complete PC package.

The optical chamber uses a beam-splitting lens to create a depth effect, with a 640 x 480 display controlled through KANALI and a hinge offering up to 60 degrees of viewing-angle adjustment. Plan the 394 x 120 x 27mm radiator, 25mm fan frame, 420mm tubes and pump housing as a complete assembly. Presentation features do not guarantee CPU temperatures, and custom content needs the appropriate connections and software setup.

Best For: White showcase desktops, Optical-display presentation, Planned 360mm cooling, Compatible Intel builds, AMD AM4/AM5 systems, Unified-frame ARGB layouts

DETAIL SPECIFICATION

TECHNICAL FEATURES

Optical depth rather than a conventional flat overlay

The pump head combines a beam-splitting lens with an optical chamber for a holographic visual effect. Choose a viewing angle that suits the case and desk position; the effect is not a guarantee of visibility from every angle.

Three fans share a unified frame

The FOBR fan design groups three rotors in a single frame to simplify the radiator-fan arrangement. Plan its 360 x 120 x 25mm space and follow the exact PWM/ARGB wiring instructions.

Software controls the presentation

KANALI supports display personalisation, monitoring and compatible custom-media formats. The official page marks audio-sync control as a future OTA feature, so it is not promised as a currently delivered function.

Check cooling fit independently from appearance

A 360mm mount must still accommodate the full radiator length, assembled thickness, tube route and pump housing. Actual thermal and acoustic results depend on the CPU, fan settings, case airflow and workload.

🔎 Technical Conclusion

Cooling Platform:
White 360mm AIO using an Asetek pump and radiator solution.

Socket Compatibility:
Listed Intel LGA1851 / 1700 / 1200 / 115X and AMD AM4 / AM5; confirm exact mounting kit.

Radiator / Fans:
394 x 120 x 27mm radiator; unified three-fan 360 x 120 x 25mm frame.

Display / Control:
640 x 480 optical display system, KANALI customisation and up to 60-degree hinge adjustment.

Physical / Installation:
420mm tubing and 125 x 94 x 92mm pump dimensions; verify the complete installation envelope.

Overall Positioning:
An optical-display-led white cooler for a planned custom desktop, with realistic fit and setup requirements.

✅ Suitable For

• Showcase PC builders
  Position the cooler and viewing angle so the optical chamber is visible without compromising installation clearance.
• Users planning a white ARGB theme
  Choose this exact white configuration and connect its PWM and ARGB interfaces correctly.
• Owners of supported Intel or AMD systems
  Verify the exact CPU socket and mounting hardware against the actual motherboard.
• Builders with a measured 360mm location
  Check radiator length, fan frame, tubing bends and display housing as one complete assembly.
